Giantco e-Dolphin II 20122012 Giantco e-Dolphin II specifications, pictures, reviews and rating |

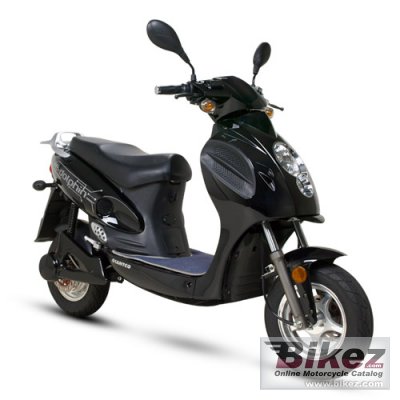

 2012 Giantco e-Dolphin II. Picture credits - Giantco. Submit more pictures. |
|
| General information | |
|---|---|
| Model name | Giantco e-Dolphin II |
| Year model | 2012 |
| Type | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Type of engine | Electric |
| Engine details | DC Brushless hub motor |
| Torque | 16.0 Nm (1.6 kgf-m or 11.8 ft.lbs) |
| Cooling system | Air |
| Gearbox | Automatic |
| Transmission type | Belt (final drive) |
| Driveline | CVT |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Oil damped telescopic fork |
| Rear suspension | Oil damped coil spring |
| Front brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Rear brakes | Single disc |
| Diameter | 180 mm (7.1 inches) |
| Physical measures and capacities | |
| Dry weight | 71.0 kg (156.5 pounds) |
| Weight incl. oil, gas, etc | 101.0 kg (222.7 pounds) |
| Seat height | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height | 1050 mm (41.3 inches) |
| Overall length | 1980 mm (78.0 inches) |
| Overall width | 700 mm (27.6 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Other specifications | |
| Color options | Black |
| Starter | Electric |
| Comments | Range 20 km. 3 x 48V 10Ah LiFePO4 Plug and Run battery. 1.5 h charging time. 5 years or 50,000 km battery life. Made in Hong Kong. |
