| General moped information |
|---|

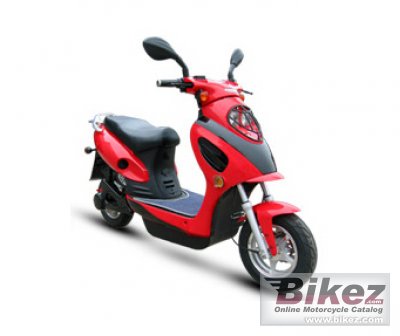

| Model: | Giantco e-Dolphin I |
| Year: | 2012 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Engine type: | Electric |
| Engine details: | DC Brushless hub motor |
| Power: | 2.68 HP (2.0 kW)) |
| Torque: | 16.00 Nm (1.6 kgf-m or 11.8 ft.lbs) |
| Top speed: | 45.0 km/h (28.0 mph) |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Oil damped telescopic fork |
| Rear suspension: | Oil damped coil spring |
| Front tyre: | 3.50-10 |
| Rear tyre: | 3.50-10 |
| Front brakes: | Single disc |
| Front brakes diameter: | 180 mm (7.1 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 180 mm (7.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 78.0 kg (172.0 pounds) |
| Weight incl. oil, gas, etc: | 108.0 kg (238.1 pounds) |
| Power/weight ratio: | 0.0344 HP/kg |
| Seat height: | 780 mm (30.7 inches) If adjustable, lowest setting. |
| Overall height: | 1,050 mm (41.3 inches) |
| Overall length: | 1,980 mm (78.0 inches) |
| Overall width: | 700 mm (27.6 inches) |
| Wheelbase: | 1,440 mm (56.7 inches) |
| Other specifications |
|---|
| Color options: | Red |
| Starter: | Electric |
| Comments: | 3 x 48V 10Ah LiFePO4 Plug and Run battery. Made in Hong Kong. |
