Giantco Dolphin Twin 50 20092009 Giantco Dolphin Twin 50 specifications, pictures, reviews and rating |

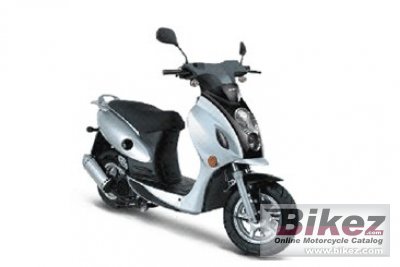

 2009 Giantco Dolphin Twin 50. Picture credits - Giantco. Submit more pictures. |
| General moped information | |
|---|---|
| Model name | Giantco Dolphin Twin 50 |
| Model year | 2009 |
| Category | Scooter |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Displacement | 49.5 ccm (3.02 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 3.5 HP (2.5 kW)) @ 8000 RPM |
| Torque | 3.0 Nm (0.3 kgf-m or 2.2 ft.lbs) @ 6500 RPM |
| Compression | 9.2:1 |
| Bore x stroke | 39.0 x 41.5 mm (1.5 x 1.6 inches) |
| Fuel control | Single Overhead Cams (SOHC) |
| Cooling system | Air |
| Transmission type | Belt (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Steel |
| Front suspension | Oil damped telescopic fork |
| Rear suspension | Oil damped coil spring |
| Front tire | 3.50-10 |
| Rear tire | 3.50-10 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 70.0 kg (154.3 pounds) |
| Power/weight ratio | 0.0497 HP/kg |
| Overall height | 1060 mm (41.7 inches) |
| Overall length | 1875 mm (73.8 inches) |
| Overall width | 735 mm (28.9 inches) |
| Wheelbase | 1315 mm (51.8 inches) |
| Fuel capacity | 4.20 litres (1.11 US gallons) |
| Oil capacity | 0.80 litres (0.85 US quarts) |
| Other specifications | |
| Color options | Silver |
| Starter | Electric & kick |
| Comments | Scooter made in China. |
