| GAS GAS' profilation of this bike |
| Its chassis, styled with more modern lines, includes steel micro fusion for greater sturdiness, less weight and a better finish. |
|
General information |
|
Motorcycle name
|

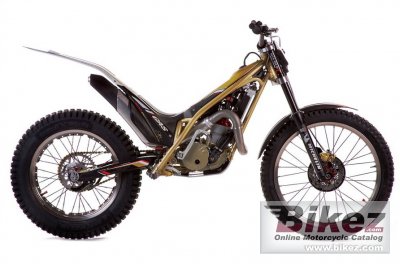

GAS GAS TXT Pro Raga 280 |
|
Year of manufacture
|
2011 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
272.0 ccm (16.60 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
76.0 x 60.0 mm (3.0 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 28 - Intake by reed valve |
|
Lubrication system
|
Fuel mixed 1:50 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
GG 1/3 hydraulic-diaphragm-system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrom-Molybdenum tubular frame |
|
Front suspension
|
Marzocchi 40 mm Aluminium Right-Sight-Up. Adjustable compression and rebound. |
|
Front wheel travel
|
177 mm (7.0 inches) |
|
Rear suspension
|
Aluminium swing arm. Progressive system with Sachs shock absorbers. Adjustable rebound and spring preload |
|
Rear wheel travel
|
164 mm (6.5 inches) |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Single disc. Galfer ´Wave´ floating, 4-piston caliper |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. Galfer ´Wave´ disc, 2-piston caliper |
|
Diameter
|
150 mm (5.9 inches) |
|
Wheels
|
Light aluminium spoke rim |
|
Physical measures and capacities |
|
Dry weight
|
66.5 kg (146.6 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall length
|
2045 mm (80.5 inches) |
|
Overall width
|
825 mm (32.5 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Color options
|
Beige |
|
Starter
|
Kick |
