| GAS GAS' profilation of this bike |
| GAS GAS has always had future champions in mind and has therefore developed a bike to suit each age group. |
|
General moped information |
|
Model name
|

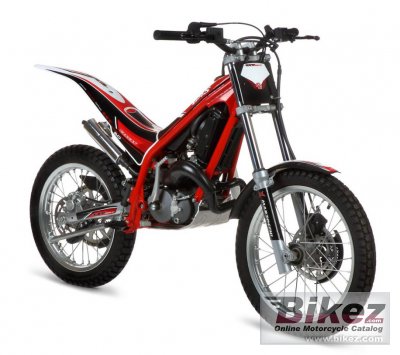

GAS GAS TXT Boy 50cc |
|
Year model
|
2011 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
49.4 ccm (3.01 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
40.0 x 39.3 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell´Orto PHVA14 - Intake by reed valve |
|
Ignition
|
Variable Electronic |
|
Lubrication system
|
2% Mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
2-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Automatic system with manual influence |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrom-Molybdenum tubular frame |
|
Front suspension
|
32mm Marzocchi fork |
|
Front wheel travel
|
140 mm (5.5 inches) |
|
Rear suspension
|
Hydraulic Sachs shock |
|
Rear wheel travel
|
155 mm (6.1 inches) |
|
Front tire
|
2.50-16 |
|
Rear tire
|
3.00-14 |
|
Front brakes
|
Single disc. 2 -piston caliper |
|
Diameter
|
160 mm (6.3 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
150 mm (5.9 inches) |
|
Wheels
|
Light aluminium spoke rim |
|
Physical measures and capacities |
|
Dry weight
|
42.0 kg (92.6 pounds) |
|
Seat height
|
600 mm (23.6 inches) If adjustable, lowest setting. |
|
Overall height
|
970 mm (38.2 inches) |
|
Overall length
|
1540 mm (60.6 inches) |
|
Overall width
|
660 mm (26.0 inches) |
|
Wheelbase
|
1005 mm (39.6 inches) |
|
Fuel capacity
|
3.00 litres (0.79 US gallons) |
|
Other specifications |
|
Color options
|
Red/black |
|
Starter
|
Kick |
|
Comments
|
Bike made in Spain. 2 speed level, preselectable in standing position. |
