| GAS GAS' profilation of this bike |
| Magnesium crankcases. MICHELIN X-Light tyres. Öhlins shock absorber. Cylinder head with the option of changing the compression ratio. |
|
General information |
|
Motorcycle name
|

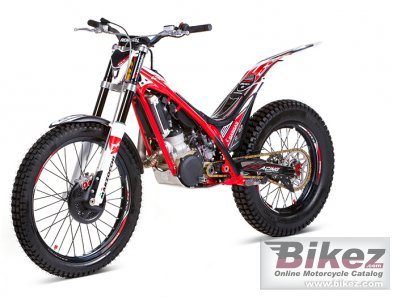

GAS GAS TXT 300 Pro Racing |
|
Year model
|
2012 |
|
Type
|
Trial |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
294.1 ccm (17.95 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
79.0 x 60.0 mm (3.1 x 2.4 inches) |
|
Fuel system
|
Carburettor. Keihin PWK 28 - Intake by reed valve |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
CDI |
|
Lubrication system
|
2.5 % Mixture |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
GG 1/3 hydraulic-diaphragm-system |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo |
|
Front suspension
|
Marzocchi 40 mm Aluminium Right-Sight-Up. |
|
Front wheel travel
|
177 mm (7.0 inches) |
|
Rear suspension
|
Reiger (2-way) hydraulic mono shock absorber |
|
Rear wheel travel
|
164 mm (6.5 inches) |
|
Front tire
|
2.75-21 |
|
Rear tire
|
4.00-18 |
|
Front brakes
|
Single disc. Floating, 4-piston caliper |
|
Diameter
|
185 mm (7.3 inches) |
|
Rear brakes
|
Single disc. 2-piston caliper |
|
Diameter
|
150 mm (5.9 inches) |
|
Wheels
|
Light aluminium spoke rim |
|
Physical measures and capacities |
|
Dry weight
|
66.5 kg (146.6 pounds) |
|
Seat height
|
650 mm (25.6 inches) If adjustable, lowest setting. |
|
Overall height
|
1130 mm (44.5 inches) |
|
Overall length
|
2045 mm (80.5 inches) |
|
Wheelbase
|
1340 mm (52.8 inches) |
|
Fuel capacity
|
2.50 litres (0.66 US gallons) |
|
Other specifications |
|
Color options
|
Red/black |
|
Starter
|
Kick |
|
Comments
|
Spanish made bike. |
