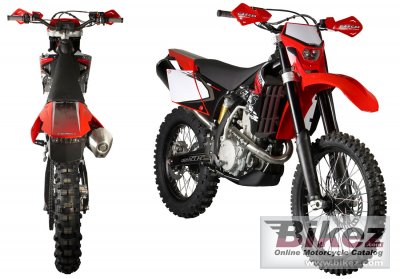

GAS GAS EC 515 FSR 20092009 GAS GAS EC 515 FSR specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model | GAS GAS EC 515 FSR |
| Model year | 2009 |
| Category | Enduro / offroad |
| Rating | 3.7 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 515.0 ccm (31.43 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Bore x stroke | 100.0 x 62.6 mm (3.9 x 2.5 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Kokusan electronic fule injection (Battery less EFI) |
| Ignition | Integrated in the injection system. |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Deltabox build with Cromoly D tubes. |
| Front suspension | 45 mm upside-down fork Marzocchi |
| Front wheel travel | 295 mm (11.6 inches) |
| Rear suspension | One-piece aluminium swing arm progressive system with Sachs shock absorber |
| Rear wheel travel | 320 mm (12.6 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 118.0 kg (260.1 pounds) |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Ground clearance | 370 mm (14.6 inches) |
| Wheelbase | 1465 mm (57.7 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Red/white, black/white |
| Starter | Electric & kick |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 09 GAS GAS EC 515 FSR discussion group or the general GAS GAS discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Buying a bike starts at Bikez
Get a list of related motorbikes before you buy this GAS GAS. Inspect technical data. Look at photos. Read the riders' comments at the bike's discussion group. And check out the bike's reliability, repair costs, etc. Show any 2009 GAS GAS EC 515 FSR for sale on our Bikez.biz Motorcycle Classifieds. You can also sign up for e-mail notification when such bikes are advertised in the future. And advertise your old MC for sale. Our efficient ads are free. You are also welcome to read and submit motorcycle reviews.| Rating sample for this GAS GAS bike | |
Offroad capabilities for the 2009 GAS GAS EC 515 FSR:  (79.1 out of 100)Click here for complete rating. |
|
