| GAS GAS' profilation of this bike |
| If you are going for the title or even the WEC, no compromise is allowed: the EC Racing is equipped with an Öhlins shock absorber, razor-sharp engine setup (with racing CDI), racing brakes and FMF silencer. |
|
General information |
|
Model name
|

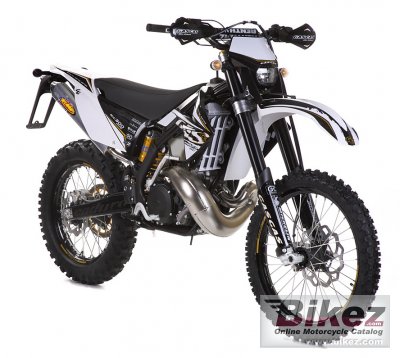

GAS GAS EC 250 Racing |
|
Year model
|
2011 |
|
Type
|
Enduro / offroad |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
|
Engine and transmission |
|
Engine size
|
249.0 ccm (15.19 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Bore x stroke
|
66.0 x 72.0 mm (2.6 x 2.8 inches) |
|
Fuel system
|
Carburettor. Keihin 38 mm - Intake by reed valve |
|
Fuel control
|
Single Overhead Cams (SOHC) |
|
Ignition
|
Digital magnetic flywheel. |
|
Lubrication system
|
Fuel mixed 1:50 |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Hydraulic multidisc |
|
Exhaust system
|
FMF |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Chrom-Molybdenum tubular frame |
|
Front suspension
|
Marzocchi 45 mm Aluminium Up-Side-Down |
|
Front wheel travel
|
295 mm (11.6 inches) |
|
Rear suspension
|
Aluminium swingarm. Progressive system with shock absorber |
|
Rear wheel travel
|
310 mm (12.2 inches) |
|
Front tire
|
90/90-21 |
|
Rear tire
|
140/80-18 |
|
Front brakes
|
Double disc |
|
Diameter
|
260 mm (10.2 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
220 mm (8.7 inches) |
|
Wheels
|
Light aluminium spoke rim |
|
Physical measures and capacities |
|
Dry weight
|
101.0 kg (222.7 pounds) |
|
Seat height
|
940 mm (37.0 inches) If adjustable, lowest setting. |
|
Overall height
|
1260 mm (49.6 inches) |
|
Overall length
|
2200 mm (86.6 inches) |
|
Overall width
|
830 mm (32.7 inches) |
|
Wheelbase
|
1475 mm (58.1 inches) |
|
Fuel capacity
|
9.50 litres (2.51 US gallons) |
|
Other specifications |
|
Color options
|
Black/white |
|
Starter
|
Kick |
|
Comments
|
Bike made in Spain. |
