General information |
|
Model
|

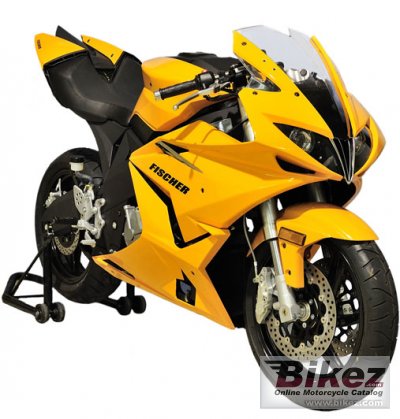

Fischer MRX |
|
Year model
|
2011 |
|
Type
|
Sport |
|
Rating
|
3.4 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
647.0 ccm (39.48 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
90 degree V-twin |
|
Effect
|
80.0 HP (58.4 kW)) @ 9500 RPM |
|
Torque
|
52.0 Nm (5.3 kgf-m or 38.4 ft.lbs) @ 7500 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
81.6 x 62.0 mm (3.2 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Carburettor. 2 x Mikuni 39mm |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Ignition
|
Computer-controlled digital with variable mapping |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
525 Regina O-ring sealed chain final drive |
|
Exhaust system
|
Dual-chamber stainless |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Twin spar alloy frame with trellis sub-structure. |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
98 mm (3.9 inches) |
|
Front suspension
|
43mm inverted telescopic with compression and rebound adjustment |
|
Rear suspension
|
Ohlins single shock with adjustable ride height, compression damping, and spring preload |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
160/60-ZR17 |
|
Front brakes
|
Double disc. Dual semi-floating 310mm disc, Brembo master cylinder, Goodridge steel brake lines |
|
Diameter
|
310 mm (12.2 inches) |
|
Rear brakes
|
Single disc. Bremo |
|
Diameter
|
210 mm (8.3 inches) |
|
Wheels
|
Light weight alloy wheels |
|
Seat
|
American cowhide leather seat |
|
Physical measures and capacities |
|
Dry weight
|
166.5 kg (367.0 pounds) |
|
Power/weight ratio
|
0.4806 HP/kg |
|
Seat height
|
749 mm (29.5 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
800 mm (31.5 inches) If adjustable, highest setting. |
|
Wheelbase
|
1397 mm (55.0 inches) |
|
Fuel capacity
|
17.00 litres (4.49 US gallons) |
|
Other specifications |
|
Starter
|
Electric |
|
Instruments
|
Analog tachometer and full electronic dashboard with digital speedometer, fuel level, time, temp, clock, and built-in performance timers. |
|
Light
|
Hella high intensity Xenon headlights |
|
Comments
|
MRX Sp and MRX Race are light weight versions with carbon fiber parts. MRX race has a weight of 150.59 kg (346 lbs). |
