Fantic Caballero TZ 300 ES 20122012 Fantic Caballero TZ 300 ES specifications, pictures, reviews and rating |

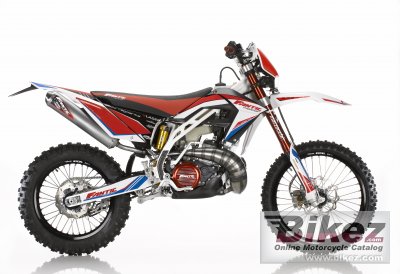

2012 Fantic Caballero TZ 300 ES. Image credits - Fantic.
| General information | |
|---|---|
| Model | Fantic Caballero TZ 300 ES |
| Year | 2012 |
| Category | Enduro / offroad |
| Rating | 3.6 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 294.7 ccm (17.98 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Bore x stroke | 72.0 x 72.0 mm (2.8 x 2.8 inches) |
| Fuel system | Carburettor. Kehin PWK 38 |
| Ignition | Kokusan |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Emission details | Euro III |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimetrale in steel and CrMo |
| Front suspension | Marzocchi fork, 48mm |
| Front wheel travel | 300 mm (11.8 inches) |
| Rear suspension | Mono Marzocchi with triple regulation |
| Rear wheel travel | 315 mm (12.4 inches) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Front brakes | Single disc. Wave |
| Diameter | 260 mm (10.2 inches) |
| Rear brakes | Single disc. Wave |
| Diameter | 220 mm (8.7 inches) |
| Physical measures and capacities | |
| Dry weight | 103.0 kg (227.1 pounds) |
| Seat height | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall length | 2060 mm (81.1 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 9.50 litres (2.51 US gallons) |
| Other specifications | |
| Color options | Red/white/blue/black |
| Starter | Kick |
| Comments | Italian brand. |
