Fantic Caballero TZ 125 SM 20122012 Fantic Caballero TZ 125 SM specifications, pictures, reviews and rating |

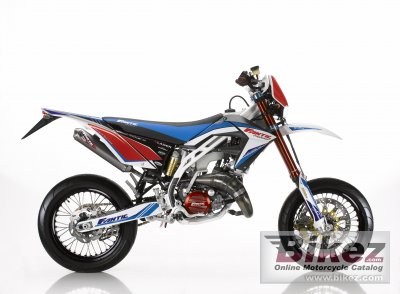

2012 Fantic Caballero TZ 125 SM. Image credits - Fantic.
| General information | |
|---|---|
| Motorcycle name | Fantic Caballero TZ 125 SM |
| Year of manufacture | 2012 |
| Type | Super motard |
| Rating | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 124.0 ccm (7.57 cubic inches) |
| Type of engine | Single cylinder, two-stroke |
| Bore x stroke | 54.0 x 54.4 mm (2.1 x 2.1 inches) |
| Fuel system | Carburettor. Kehin PWK 38 |
| Ignition | Kokusan |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Hydraulic multidisc in oil bath |
| Emission details | Euro 3 |
| Exhaust system | Aluminium |
| Chassis, suspension, brakes and wheels | |
| Frame type | Perimetrale tube in steel and CrMo |
| Front suspension | Marzocchi Shiver, 45 mm |
| Front wheel travel | 290 mm (11.4 inches) |
| Rear suspension | Sachs monoshock, tree step regulation |
| Rear wheel travel | 290 mm (11.4 inches) |
| Front tire | 120/60-17 |
| Rear tire | 150/60-17 |
| Front brakes | Single disc. Bremo Oro |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Nissin |
| Diameter | 220 mm (8.7 inches) |
| Wheels | Black alumnium rims |
| Physical measures and capacities | |
| Dry weight | 95.0 kg (209.4 pounds) |
| Seat height | 895 mm (35.2 inches) If adjustable, lowest setting. |
| Overall length | 2040 mm (80.3 inches) |
| Wheelbase | 1473 mm (58.0 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Blue/white/red/black |
| Starter | Kick |
| Comments | Model also called Motard 125 2T. Italian brand. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 12 Fantic Caballero TZ 125 SM discussion group or the general Fantic discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Free motorcycle classifieds
Click here to sell a used 2012 Fantic Caballero TZ 125 SM or advertise any other MC for sale. You can list all available Fantic Caballero TZ 125 SM bikes and also sign up for e-mail notification when such motorcycles are advertised in the future. Ads with or without pictures are easy to create. Our classifieds are completely free with sections for every country in the world. You can also check out our list of related motorbikes. Compare technical data. Look at photos. View your fellow riders' rating of the bike's reliability, design, engine performance, accident risk, repair cost, etc.| Rating sample for this Fantic bike | |
Value for money for the 2012 Fantic Caballero TZ 125 SM:  (64.4 out of 100)Click here for complete rating. |
|
