| General information |
|---|

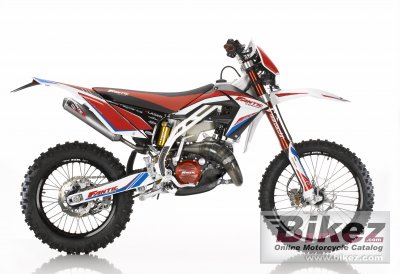

| Model: | Fantic Caballero TZ 125 ES |
| Year: | 2012 |
| Category: | Enduro / offroad |
| Rating: | 3.3 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
| Engine and transmission |
|---|
| Displacement: | 124.0 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.4 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Kehin PWK 38 |
| Ignition: | Kokusan |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Hydraulic multidisc in oil bath |
| Exhaust system: | Aluminium |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetrale tube in steel and CrMo |
| Front suspension: | Marzocchi fork, 48 mm |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | Ohlins monoshock, tree step regulation |
| Rear wheel travel: | 315 mm (12.4 inches) |
| Front tyre: | 90/90-21 |
| Rear tyre: | 140/80-18 |
| Front brakes: | Single disc. Nissin, floating wave disk |
| Diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Nissin, wave disk |
| Diameter: | 220 mm (8.7 inches) |
| Wheels: | Black rims |
| Physical measures and capacities |
|---|
| Dry weight: | 90.5 kg (199.5 pounds) |
| Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall length: | 2060 mm (81.1 inches) |
| Wheelbase: | 1473 mm (58.0 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Color options: | Red/white/blue/black |
| Starter: | Kick |
| Comments: | Model also called Regolarita Scuderia. Italian brand. |
| Further information |
|---|
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Finance options | Compare US motorcycle loan quotes from the nation's top providers. |
| Parts finder |
Chaparral provides online schematics & OEM parts for the US. Revzilla offers up to 50% off motorcycle accessories. Ships to most countries.
Also check out our overview of motorcycle webshops at Bikez.info. |
| Dirt-bike parts | Dirt-bike parts and gear available from Mega Motor Madness . Ships to most countries. |
| Ask questions | Join the 12 Fantic Caballero TZ 125 ES discussion group or the general Fantic discussion group. |
| Related bikes | List related bikes for comparison of specs. |
|
|
|
Rating sample for this Fantic bike
|
Reliability for the 2012 Fantic Caballero TZ 125 ES:
 (82.4 out of 100)
Click here for complete rating. You can also compare bikes.
|
|
