| General information |
|---|

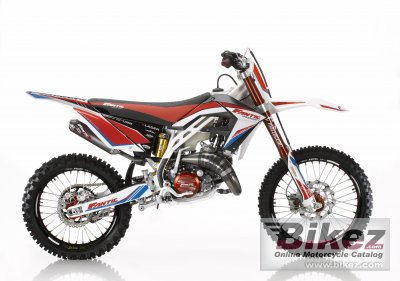

| Model: | Fantic Caballero TZ 125 CS |
| Year: | 2012 |
| Category: | Cross / motocross |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 124.00 ccm (7.57 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Bore x stroke: | 54.0 x 54.4 mm (2.1 x 2.1 inches) |
| Fuel system: | Carburettor. Kehin PWK 38 |
| Ignition: | Kokusan |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Hydraulic multidisc in oil bath |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Perimetrale in steel and CrMo |
| Front suspension: | Marzocchi Shiver 40 |
| Front wheel travel: | 300 mm (11.8 inches) |
| Rear suspension: | Ohlins monoshock with triple regulation |
| Rear wheel travel: | 315 mm (12.4 inches) |
| Front tyre: | 100/80-21 |
| Rear tyre: | 100/90-19 |
| Front brakes: | Single disc. Nissin, floating disk |
| Front brakes diameter: | 260 mm (10.2 inches) |
| Rear brakes: | Single disc. Nissin, wave disk |
| Rear brakes diameter: | 220 mm (8.7 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 90.5 kg (199.5 pounds) |
| Seat height: | 940 mm (37.0 inches) If adjustable, lowest setting. |
| Overall length: | 2,060 mm (81.1 inches) |
| Wheelbase: | 1,473 mm (58.0 inches) |
| Fuel capacity: | 7.50 litres (1.98 gallons) |
| Other specifications |
|---|
| Color options: | Red/white/blue/black |
| Starter: | Electric & kick |
| Comments: | Also called Cross Scuderia. Made in Italy. |
