| General moped information |
|---|

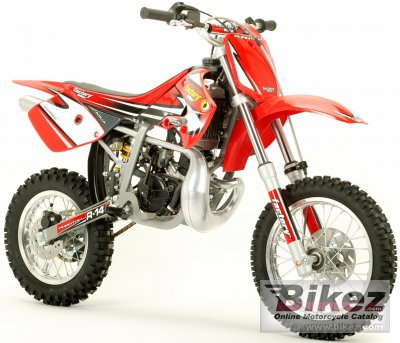

| Model: | Factory Bike Phantom R 14 Agua |
| Year: | 2005 |
| Category: | Minibike, cross |
| Rating: | 63.1 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 11.00 HP (8.0 kW)) |
| Compression: | 13.0:1 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Ortho 19 mm |
| Ignition: | CDI |
| Lubrication system: | Mixed 2T oil 2% |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
Transmission type,
final drive: | Chain |
| Clutch: | Automatic |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Hardened steel |
| Front suspension: | Paioli |
| Rear suspension: | Monshock |
| Front brakes: | Single disc |
| Front brakes diameter: | 184 mm (7.2 inches) |
| Rear brakes: | Single disc |
| Physical measures and capacities |
|---|
| Dry weight: | 45.0 kg (99.2 pounds) |
| Power/weight ratio: | 0.2444 HP/kg |
| Overall length: | 1,570 mm (61.8 inches) |
| Overall width: | 700 mm (27.6 inches) |
| Fuel capacity: | 2.50 litres (0.66 gallons) |
| Other specifications |
|---|
| Color options: | Red, Blue |
| Starter: | Kick |
| Further information |
|---|
