Factory Bike Phantom R 12 Agua 20052005 Factory Bike Phantom R 12 Agua specifications, pictures, reviews and rating |

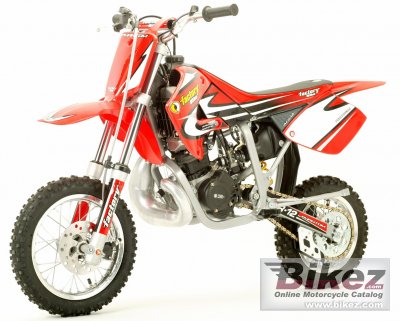

 2005 Factory Bike Phantom R 12 Agua. Picture credits - Factory Bike. Submit more pictures.
|
|
| General moped information | |
|---|---|
| Model: | Factory Bike Phantom R 12 Agua |
| Year: | 2005 |
| Category: | Minibike, cross |
| Rating: | 59.5 out of 100. Show full rating and compare with other bikes |
| Engine and transmission | |
| Displacement: | 49.80 ccm (3.04 cubic inches) |
| Engine type: | Single cylinder, two-stroke |
| Power: | 11.00 HP (8.0 kW)) |
| Compression: | 13.0:1 |
| Bore x stroke: | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system: | Carburettor. Dell´Ortho 19 mm |
| Ignition: | CDI |
| Lubrication system: | Mixed 2T oil 2% |
| Cooling system: | Liquid |
| Gearbox: | Automatic |
| Transmission type, final drive: | Chain |
| Clutch: | Automatic |
| Chassis, suspension, brakes and wheels | |
| Frame type: | Hardened steel |
| Front suspension: | Paioli |
| Rear suspension: | Monshock |
| Front brakes: | Single disc |
| Front brakes diameter: | 165 mm (6.5 inches) |
| Rear brakes: | Single disc |
| Physical measures and capacities | |
| Dry weight: | 43.0 kg (94.8 pounds) |
| Power/weight ratio: | 0.2558 HP/kg |
| Seat height: | 670 mm (26.4 inches) If adjustable, lowest setting. |
| Overall height: | 950 mm (37.4 inches) |
| Overall length: | 1,400 mm (55.1 inches) |
| Overall width: | 700 mm (27.6 inches) |
| Wheelbase: | 975 mm (38.4 inches) |
| Fuel capacity: | 2.50 litres (0.66 gallons) |
| Other specifications | |
| Color options: | Red, Blue |
| Starter: | Kick |
