Factory Bike Phantom R14 Agua 2007

2007 Factory Bike Phantom R14 Agua specifications, pictures, reviews and rating

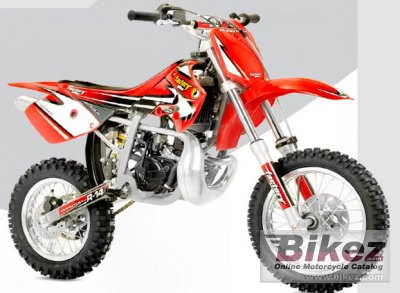

2007 Factory Bike Phantom R14 Agua. Picture credits - Factory Bike. Submit more pictures.

2007 Factory Bike Phantom R14 Agua

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

General moped information
Model:	Factory Bike Phantom R14 Agua
Year:	2007
Category:	Minibike, cross
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Displacement:	49.80 ccm (3.04 cubic inches)
Engine type:	Single cylinder, two-stroke
Power:	12.80 HP (9.3 kW))
Compression:	13.0:1
Bore x stroke:	39.0 x 41.7 mm (1.5 x 1.6 inches)
Ignition:	CDI
Cooling system:	Liquid
Transmission type, final drive:	Chain
Clutch:	Automatic
Chassis, suspension, brakes and wheels
Front brakes:	Single disc
Front brakes diameter:	185 mm (7.3 inches)
Rear brakes:	Single disc
Physical measures and capacities
Dry weight:	45.0 kg (99.2 pounds)
Power/weight ratio:	0.2844 HP/kg
Seat height:	730 mm (28.7 inches) If adjustable, lowest setting.
Overall height:	100 mm (3.9 inches)
Overall length:	1,570 mm (61.8 inches)
Overall width:	700 mm (27.6 inches)
Wheelbase:	1,080 mm (42.5 inches)
Fuel capacity:	2.50 litres (0.66 gallons)
Other specifications
Color options:	Red
Starter:	Kick
Comments:	Franco Morini S6-C engine.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 07 Factory Bike Phantom R14 Agua discussion group or the general Factory Bike discussion group.
Related bikes	List related bikes for comparison of specs.

General moped information

Model:

Factory Bike Phantom R14 Agua

Year:

2007

Category:

Minibike, cross

Rating:

Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating.

Engine and transmission

Displacement:

49.80 ccm (3.04 cubic inches)

Engine type:

Single cylinder, two-stroke

Power:

12.80 HP (9.3 kW))

Compression:

13.0:1

Bore x stroke:

39.0 x 41.7 mm (1.5 x 1.6 inches)

Ignition:

CDI

Cooling system:

Liquid

Transmission type,
final drive:

Chain

Clutch:

Automatic

Chassis, suspension, brakes and wheels

Front brakes:

Single disc

Front brakes diameter:

185 mm (7.3 inches)

Rear brakes:

Single disc

Physical measures and capacities

Dry weight:

45.0 kg (99.2 pounds)

Power/weight ratio:

0.2844 HP/kg

Seat height:

730 mm (28.7 inches) If adjustable, lowest setting.

Overall height:

100 mm (3.9 inches)

Overall length:

1,570 mm (61.8 inches)

Overall width:

700 mm (27.6 inches)

Wheelbase:

1,080 mm (42.5 inches)

Fuel capacity:

2.50 litres (0.66 gallons)

Other specifications

Color options:

Red

Starter:

Kick

Comments:

Franco Morini S6-C engine.
