Factory Bike Phantom R12 Agua 20072007 Factory Bike Phantom R12 Agua specifications, pictures, reviews and rating |

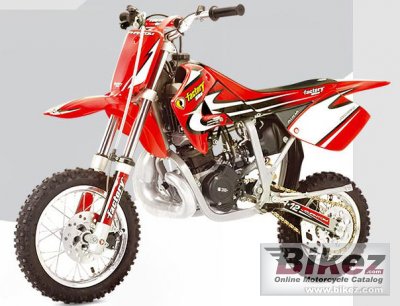

 2007 Factory Bike Phantom R12 Agua. Picture credits - Factory Bike. Submit more pictures.
|
|
| General moped information | |
|---|---|
| Model | Factory Bike Phantom R12 Agua |
| Year | 2007 |
| Category | Minibike, cross |
| Rating | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.8 ccm (3.04 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 13.0:1 |
| Bore x stroke | 39.0 x 41.7 mm (1.5 x 1.6 inches) |
| Fuel system | Carburettor. Dell’Orto 19mm |
| Ignition | CDI |
| Cooling system | Liquid |
| Transmission type | Chain (final drive) |
| Clutch | Automatic |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Paioli hydraulic |
| Rear suspension | Shock-Absorber |
| Front tire | 2.50-12 |
| Rear tire | 2.50-12 |
| Front brakes | Single disc |
| Diameter | 165 mm (6.5 inches) |
| Rear brakes | Single disc |
| Physical measures and capacities | |
| Dry weight | 43.0 kg (94.8 pounds) |
| Overall height | 950 mm (37.4 inches) |
| Overall length | 1400 mm (55.1 inches) |
| Overall width | 700 mm (27.6 inches) |
| Wheelbase | 975 mm (38.4 inches) |
| Fuel capacity | 2.50 litres (0.66 US gallons) |
| Other specifications | |
| Color options | Red |
| Starter | Kick |
| Comments | Franco Morini S6-C engine. |
