General moped information |
|
Model name
|

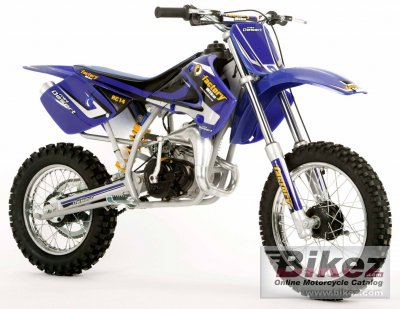

Factory Bike Mini Desert RC 14 |
|
Model year
|
2005 |
|
Category
|
Minibike, cross |
|
Rating
|
3.3 See the detailed rating of the fun-factor, engine performance, racing track capabilities, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
49.8 ccm (3.04 cubic inches) |
|
Engine type
|
Single cylinder, two-stroke |
|
Power output
|
2.5 HP (1.8 kW)) |
|
Compression
|
9.0:1 |
|
Bore x stroke
|
39.0 x 41.7 mm (1.5 x 1.6 inches) |
|
Fuel system
|
Carburettor. Dell´Ortho SHA 12/14 |
|
Ignition
|
Electronic |
|
Lubrication system
|
Mixed 2T oil 2% |
|
Cooling system
|
Air |
|
Gearbox
|
Automatic |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Hardened steel |
|
Front suspension
|
Hydraulic |
|
Rear suspension
|
Monshock |
|
Front brakes
|
Single disc |
|
Diameter
|
165 mm (6.5 inches) |
|
Rear brakes
|
Expanding brake (drum brake) |
|
Physical measures and capacities |
|
Dry weight
|
36.0 kg (79.4 pounds) |
|
Power/weight ratio
|
0.0694 HP/kg |
|
Seat height
|
715 mm (28.1 inches) If adjustable, lowest setting. |
|
Overall height
|
740 mm (29.1 inches) |
|
Overall length
|
1460 mm (57.5 inches) |
|
Overall width
|
820 mm (32.3 inches) |
|
Wheelbase
|
1080 mm (42.5 inches) |
|
Fuel capacity
|
2.00 litres (0.53 US gallons) |
|
Other specifications |
|
Color options
|
Red, Blue |
|
Starter
|
Kick |
