General moped information |
|
Motorcycle name
|

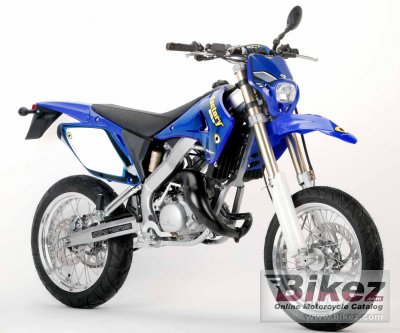

Factory Bike Chrono SM 50 |
|
Year of manufacture
|
2006 |
|
Type
|
Super motard |
|
Rating
|
2.2 Check out the detailed rating of off-road capabilities, engine performance, maintenance cost, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
49.7 ccm (3.03 cubic inches) |
|
Type of engine
|
Single cylinder, two-stroke |
|
Compression
|
12.0:1 |
|
Bore x stroke
|
40.3 x 39.0 mm (1.6 x 1.5 inches) |
|
Fuel system
|
Carburettor. Dell’Orto PHBN |
|
Ignition
|
Electronic |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Hardened Steel CrMo. Bolt-on rear section |
|
Front suspension
|
PAIOLI hydraulic 36mm |
|
Rear suspension
|
PAIOLI monoshock |
|
Front tire
|
100/80-17 |
|
Rear tire
|
130/70-18 |
|
Front brakes
|
Single disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
200 mm (7.9 inches) |
|
Physical measures and capacities |
|
Dry weight
|
80.0 kg (176.4 pounds) |
|
Overall length
|
1990 mm (78.3 inches) |
|
Overall width
|
810 mm (31.9 inches) |
|
Wheelbase
|
1370 mm (53.9 inches) |
|
Fuel capacity
|
7.50 litres (1.98 US gallons) |
|
Other specifications |
|
Color options
|
Black |
|
Starter
|
Kick |
