Factory Bike Chrono SM50 20102010 Factory Bike Chrono SM50 specifications, pictures, reviews and rating |

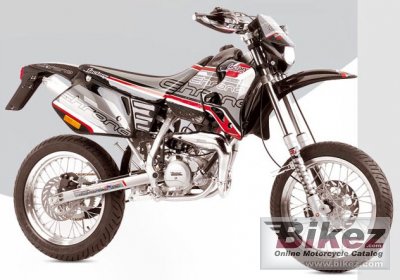

 2010 Factory Bike Chrono SM50. Picture credits - Factory Bike. Submit more pictures.
|
| General moped information | |
|---|---|
| Motorcycle name | Factory Bike Chrono SM50 |
| Model year | 2010 |
| Category | Super motard |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Displacement | 49.7 ccm (3.03 cubic inches) |
| Engine type | Single cylinder, two-stroke |
| Compression | 12.0:1 |
| Fuel system | Carburettor. Dell’Orto PHBN |
| Ignition | El |
| Lubrication system | Automix |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet, multiplate |
| Chassis, suspension, brakes and wheels | |
| Frame type | Hardened steel CrMo, bolt-on rear section |
| Front suspension | PAIOLI Fork 36 mm |
| Rear suspension | PAIOLI Monoshock |
| Front tire | 100/80-17 |
| Rear tire | 130/70-18 |
| Front brakes | Single disc. AJP double piston |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. single piston |
| Diameter | 200 mm (7.9 inches) |
| Physical measures and capacities | |
| Dry weight | 80.0 kg (176.4 pounds) |
| Overall height | 1170 mm (46.1 inches) |
| Overall length | 1990 mm (78.3 inches) |
| Overall width | 810 mm (31.9 inches) |
| Fuel capacity | 7.50 litres (1.98 US gallons) |
| Other specifications | |
| Color options | Black |
| Starter | Kick |
| Comments | Spanish made bike. Minarelli AM6 engine. |
