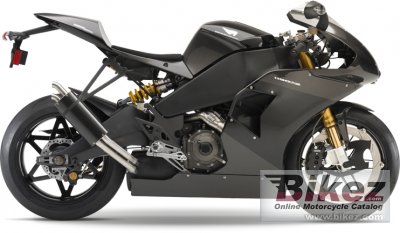

| Erik Buell Racing's profilation of this bike |
| We knew from the beginning we could build this bike. But we expected any number of roadblocks to knock us off track. After all, starting a company in this economic climate with no other goal than to produce high performance motorcycles takes either a fair amount of ignorance or a brass set. But things kept falling into place. And today, the reward is 389lbs. of meticulously designed sport motorcycle propelled by a powerful 175hp motor. Must be fate. |
| General information |
|---|
| Model: | Erik Buell Racing 1190RS |
| Year: | 2012 |
| Category: | Sport |
| Price as new: | US$ 39999. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1190.0 ccm (72.61 cubic inches) |
| Engine type: | V2, four-stroke |
| Power: | 175.0 HP (127.7 kW)) @ 9750 RPM |
| Torque: | 131.5 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 9400 RPM |
| Compression: | 14.3:1 |
| Bore x stroke: | 106.0 x 67.5 mm (4.2 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system: | Liquid |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Wet multiplate Slipper |
| Driveline: | 520 Chain, 16/41 |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Aluminum frame with integral fuel reservoir. Optimized stiffness aluminum swing arm. |
| Rake (fork angle): | 22.0° |
| Trail: | 86 mm (3.4 inches) |
| Front suspension: | 43 mm Öhlins inverted fork, adjustable compression damping, rebound damping adjustable spring preload |
| Rear suspension: | Öhlins fully adjustable TTX coil over monoshock with remote reservoir |
| Front tyre: | 120/70-R17 |
| Rear tyre: | 190/55-R17 |
| Front brakes: | Double disc. ISO finned rotor, 8 piston caliper with cooling duct |
| Rear brakes: | Single disc. Lightweight disc, 2 piston caliper |
| Wheels: | Magnesium |
| Physical measures and capacities |
|---|
| Dry weight: | 176.0 kg (388.0 pounds) |
| Power/weight ratio: | 0.9943 HP/kg |
| Wheelbase: | 1400 mm (55.1 inches) |
| Fuel capacity: | 17.41 litres (4.60 gallons) |
| Other specifications |
|---|
| Color options: | Boreas Frost/Burnt Armor, Abraxas Inferno/Burnt Armor |
| Starter: | Electric |
| Electrical: | Buell Li-tech Lithium Nanotech Battery |
| Comments: | Limited edition bike |
