General information |
|
Model name
|

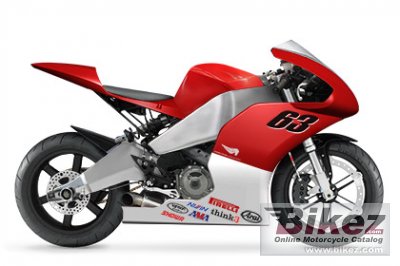

Erik Buell Racing 1190RR |
|
Year of manufacture
|
2011 |
|
Type
|
Sport |
| Price as new | US$ 44900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1190.0 ccm (72.61 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
72 and #730; V-Twin. Titanium valves, 42.0mm intake, 35.4 mm exhaust |
|
Output
|
185.0 HP (135.0 kW)) @ 11500 RPM |
|
Torque
|
126.1 Nm (12.9 kgf-m or 93.0 ft.lbs) @ 9500 RPM |
|
Compression
|
14.3:1 |
|
Bore x stroke
|
106.0 x 67.5 mm (4.2 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, dual injector with showerhead, PWM fuel pump |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate Slipper |
|
Driveline
|
520 Chain. Primary drive: Straight cut gear, 1.806 ratio. |
|
Exhaust system
|
Titanium ultralight 2 into 1 system. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Light alloy large section beam with integral fuel cell. Subframe: Light alloy tubular. |
|
Front suspension
|
Showa Race 43mm inverted fork, fully adjustable with BPF technology providing true separation of rebound and compression damping. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Light alloy swingarm with Showa Race damper, adjustable compression, rebound and ride height. |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper |
|
Diameter
|
388 mm (15.3 inches) |
|
Rear brakes
|
Single disc. Lightweight disc, 2 piston caliper |
|
Diameter
|
240 mm (9.4 inches) |
|
Wheels
|
6 spoke magnesium |
|
Physical measures and capacities |
|
Dry weight
|
163.3 kg (360.0 pounds) |
|
Power/weight ratio
|
1.1330 HP/kg |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
17.41 litres (4.60 US gallons) |
|
Other specifications |
|
Color options
|
Red/white |
|
Electrical
|
Buell Li-tech Lithium Nanotech Battery |
|
Comments
|
Adjustable rake. Adjustable wheelbase. Brand name sometimes abbreviated EBR or EBRacing. Track bike, not street legal. |
