| General information |
|---|

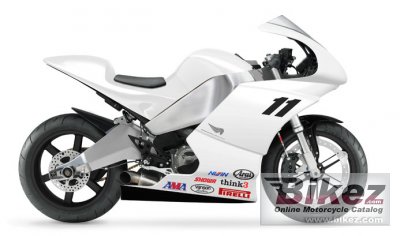

| Model: | Erik Buell Racing 1125RR ASB |
| Year: | 2011 |
| Category: | Sport |
| Price as new: | US$ 41900. MSRP depend on country, taxes, accessories, etc. |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 1126.0 ccm (68.71 cubic inches) |
| Engine type: | V2, four-stroke |
| Engine details: | 72 and #730; V-Twin. Titanium valves, 42.0mm intake, 35.4 mm exhaust |
| Power: | 170.0 HP (124.1 kW)) @ 11500 RPM |
| Torque: | 116.6 Nm (11.9 kgf-m or 86.0 ft.lbs) @ 10000 RPM |
| Compression: | 14.3:1 |
| Bore x stroke: | 103.0 x 67.5 mm (4.1 x 2.7 inches) |
| Valves per cylinder: | 4 |
| Fuel system: | Injection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, single injector, PWM fuel pump |
| Fuel control: | Double Overhead Cams/Twin Cam (DOHC) |
| Gearbox: | 6-speed |
Transmission type,
final drive: | Chain |
| Clutch: | Multiplate Mechanical Slipper |
| Driveline: | 520 Chain. Primary drive: Straight cut gear, 1.806 ratio. |
| Exhaust system: | Stainless steel ultralight 2 into 1 system. |
| Chassis, suspension, brakes and wheels |
|---|
| Frame type: | Light alloy large section beam with integral fuel cell. Subframe: Light alloy tubular. |
| Rake (fork angle): | 21.0° |
| Front suspension: | Showa Race 43mm inverted fork, fully adjustable with BPF technology providing true separation of rebound and compression damping. |
| Front wheel travel: | 120 mm (4.7 inches) |
| Rear suspension: | Light alloy swingarm with Showa Race damper, adjustable compression, rebound and ride height. |
| Rear wheel travel: | 127 mm (5.0 inches) |
| Front tyre: | 120/70-ZR17 |
| Rear tyre: | 190/55-ZR17 |
| Front brakes: | Double disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper |
| Diameter: | 388 mm (15.3 inches) |
| Rear brakes: | Single disc. Lightweight disc, 2 piston caliper |
| Diameter: | 205 mm (8.1 inches) |
| Wheels: | Front 6 spoke ZTL magnesium, 3.50 x 17. Rear 6 spoke magnesium, 6.00 x 17. |
| Physical measures and capacities |
|---|
| Dry weight: | 166.9 kg (368.0 pounds) |
| Power/weight ratio: | 1.0185 HP/kg |
| Wheelbase: | 1400 mm (55.1 inches) |
| Fuel capacity: | 17.41 litres (4.60 gallons) |
| Other specifications |
|---|
| Color options: | White |
| Electrical: | Buell Li-tech Lithium Nanotech Battery |
| Comments: | Racing bike not legal for street usage. Adjustable rake. Adjustable wheelbase. Brand name sometimes abbreviated EBR or EBRacing. |
