General information |
|
Motorcycle name
|

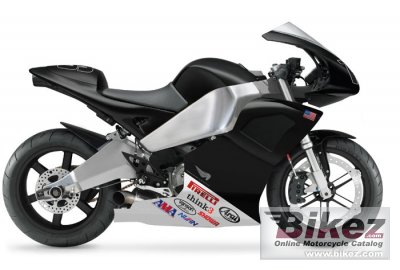

Erik Buell Racing 1125R DSB |
|
Year model
|
2011 |
|
Type
|
Sport |
| Price as new | US$ 15900. MSRP depends on country, taxes, accessories, etc. |
|
Rating
|
3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
1126.0 ccm (68.71 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
72 and #730; V-Twin |
|
Effect
|
140.0 HP (102.2 kW)) @ 10800 RPM |
|
Torque
|
108.5 Nm (11.1 kgf-m or 80.0 ft.lbs) @ 8500 RPM |
|
Compression
|
12.6:1 |
|
Bore x stroke
|
103.0 x 67.5 mm (4.1 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. IDS Technology DDFI 3 electronic fuel injection and engine management system, fully programmable, 61mm throttle bodies, single injector, PWM fuel pump |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Multiplate with vacuum operated slipper or optional mechanical slipper at extra charge |
|
Driveline
|
520 Chain. Primary drive: Straight cut gear, 1.806 ratio. |
|
Exhaust system
|
Stainless steel ultralight 2 into 1 system. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Light alloy large section beam with integral fuel cell. Subframe: Light alloy tubular. |
|
Rake (fork angle)
|
21.8° |
|
Front suspension
|
Showa 47mm inverted fork with race cartridge, fully adjustable. |
|
Front wheel travel
|
120 mm (4.7 inches) |
|
Rear suspension
|
Light alloy swingarm with Showa Race damper, adjustable compression, rebound and ride height. |
|
Rear wheel travel
|
127 mm (5.0 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/55-ZR17 |
|
Front brakes
|
Double disc. Semi floating ISO multi-fin rotor with 8 piston ZTL2 caliper |
|
Diameter
|
388 mm (15.3 inches) |
|
Rear brakes
|
Single disc. Lightweight disc, 2 piston caliper |
|
Diameter
|
205 mm (8.1 inches) |
|
Wheels
|
Front 6 spoke ZTL, 3.50 x 17. Rear 6 spoke cast aluminum, 5.50 x 17. |
|
Physical measures and capacities |
|
Dry weight
|
176.9 kg (390.0 pounds) |
|
Power/weight ratio
|
0.7914 HP/kg |
|
Wheelbase
|
1400 mm (55.1 inches) |
|
Fuel capacity
|
20.06 litres (5.30 US gallons) |
|
Other specifications |
|
Color options
|
Black/silver |
|
Comments
|
Racing bike not legal for street usage. Adjustable rake and wheelbase. |
