General information |
|
Model
|

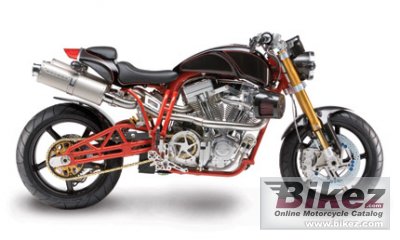

Ecosse The Heretic |
|
Year of manufacture
|
2012 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1966.0 ccm (119.97 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
Billet aluminum; 45-degree American V-Twin. Hand built, blueprinted and balanced. Dynamically balanced crank for reduced vibration. |
|
Output
|
133.0 HP (97.1 kW)) |
|
Torque
|
185.8 Nm (18.9 kgf-m or 137.0 ft.lbs) |
|
Compression
|
10.5:1 |
|
Bore x stroke
|
108.0 x 108.0 mm (4.3 x 4.3 inches) |
|
Fuel system
|
Carburettor. Mikuni 45mm flat slide |
|
Fuel control
|
Double Overhead Cams/Twin Cam (DOHC) |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Driveline
|
Primary: Wet chain. |
|
Exhaust system
|
Handcrafted by ECOSSE. 2 into 1. Stainless steel head pipes with dual titanium mufflers. |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
CrMo mainframe, subframe and swingarm. Carbon fiber (headlight, fenders, tank, tail, tach shroud, air filter cover and seat pans) |
|
Rake (fork angle)
|
25.0° |
|
Front suspension
|
Öhlins Upside-down, fully adjustable fork |
|
Front wheel travel
|
132 mm (5.2 inches) |
|
Rear suspension
|
Öhlins fully adjustable. 3 modes, dragster, cruiser, road racer. |
|
Rear wheel travel
|
165 mm (6.5 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
190/70-ZR17 |
|
Front brakes
|
Double disc. 6-piston radial calipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston calipers |
|
Diameter
|
260 mm (10.2 inches) |
|
Wheels
|
17´ forged aluminum. Silver or black. Optional BST carbon-fiber wheels. |
|
Seat
|
Low-profile (sleek) or high-profile (plush) |
|
Physical measures and capacities |
|
Dry weight
|
205.0 kg (452.0 pounds) |
|
Power/weight ratio
|
0.6487 HP/kg |
|
Seat height
|
698 mm (27.5 inches) If adjustable, lowest setting. |
|
Alternate seat height
|
775 mm (30.5 inches) If adjustable, highest setting. |
|
Ground clearance
|
165 mm (6.5 inches) |
|
Wheelbase
|
1537 mm (60.5 inches) |
|
Fuel capacity
|
15.90 litres (4.20 US gallons) |
|
Oil capacity
|
3.70 litres (3.91 US quarts) |
|
Other specifications |
|
Color options
|
Any pearl color or clear-coated
carbon fiber with highlight and pin stripe. |
|
Starter
|
Electric |
|
Instruments
|
Analog tach; LCD speedo |
|
Comments
|
Optional polished engine, custom ergonomics, GP shift pattern, and more. Limited edition bike. Each unit engraved with sequential
production number. |
