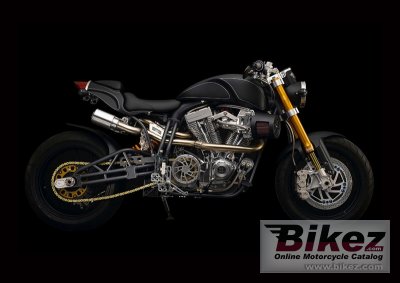

Ecosse Iconoclast 20112011 Ecosse Iconoclast specifications, pictures, reviews and rating |
| Ecosse's profilation of this bike |
| Founded in 2001, the company spent three years perfecting The Heretic through three complete prototype iterations. Now, exclusively for 20ltd.com, they have created the 135hp handcrafted Iconoclast. In only 11 editions! |
| General information | |
|---|---|
| Model | Ecosse Iconoclast |
| Year of manufacture | 2011 |
| Type | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission | |
| Engine size | 1966.0 ccm (119.97 cubic inches) |
| Type of engine | V2, four-stroke |
| Engine details | Machined from solid billet aluminum |
| Output | 135.0 HP (98.5 kW)) |
| Torque | 189.8 Nm (19.4 kgf-m or 140.0 ft.lbs) |
| 0-100 km/h (0-62 mph) | 2.80 seconds |
| Bore x stroke | 108.0 x 108.0 mm (4.3 x 4.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | Special custom racing exhaust for Iconoclast Series; machined from solid with ECOSSE logo machined on mufflers. Exhaust duplexer located for maximum torque. |
| Chassis, suspension, brakes and wheels | |
| Frame type | 4130 Chrome-moly TIG welded by hand. FEA tested. Oil circulates through 3” backbone and all four 1¿ down tubes for additional cooling. Trellis-style double-sided swingarm and subframe. |
| Front suspension | Custom Öhlins, fully adjustable forks |
| Rear suspension | Öhlins custom shocks |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/70-ZR17 |
| Front brakes | Double disc. 6-piston radial calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 260 mm (10.2 inches) |
| Wheels | Black forged aluminum 17” wheels |
| Physical measures and capacities | |
| Dry weight | 208.7 kg (460.0 pounds) |
| Power/weight ratio | 0.6470 HP/kg |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Matt black clear tint on hand-formed carbon fiber bodywork. Silver hand-painted pin stripe . |
| Starter | Electric |
| Instruments | Digital speedometer and programmable tachometer (shift points programmable; able to time 0-60, 0-100, quarter-mile passes, etc., plus many other options) |
| Comments | Limited edition of only 11 bikes. |
