Ecosse Iconoclast 20092009 Ecosse Iconoclast specifications, pictures, reviews and rating |

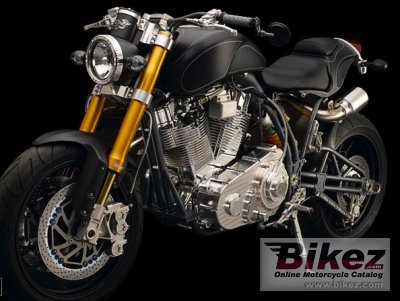

 2009 Ecosse Iconoclast. Picture credits - Ecosse. Submit more pictures.
|
| General information | |
|---|---|
| Model name | Ecosse Iconoclast |
| Year model | 2009 |
| Type | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 1966.0 ccm (119.97 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 135.0 HP (98.5 kW)) |
| Torque | 189.8 Nm (19.4 kgf-m or 140.0 ft.lbs) |
| 0-100 km/h (0-62 mph) | 2.80 seconds |
| Bore x stroke | 108.0 x 108.0 mm (4.3 x 4.3 inches) |
| Fuel system | Carburettor |
| Fuel control | Double Overhead Cams/Twin Cam (DOHC) |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Exhaust system | Special custom racing exhaust for Iconoclast Series; machined from solid with ECOSSE logo machined on mufflers. Exhaust duplexer located for maximum torque. |
| Chassis, suspension, brakes and wheels | |
| Frame type | 4130 Chrome-moly TIG welded by hand. FEA tested. Oil circulates through 3” backbone and all four 1¿ down tubes for additional cooling. Trellis-style double-sided swingarm and subframe. |
| Front suspension | Custom Öhlins, fully adjustable forks |
| Rear suspension | Öhlins custom shocks |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/70-ZR17 |
| Front brakes | Double disc. 6-piston radial calipers |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. 2-piston calipers |
| Diameter | 260 mm (10.2 inches) |
| Physical measures and capacities | |
| Dry weight | 208.7 kg (460.0 pounds) |
| Power/weight ratio | 0.6470 HP/kg |
| Oil capacity | 3.70 litres (3.91 US quarts) |
| Other specifications | |
| Color options | Matt black clear tint on hand-formed carbon fiber bodywork. Silver hand-painted pin stripe . |
| Starter | Electric |
| Comments | Limited edition bike. |
