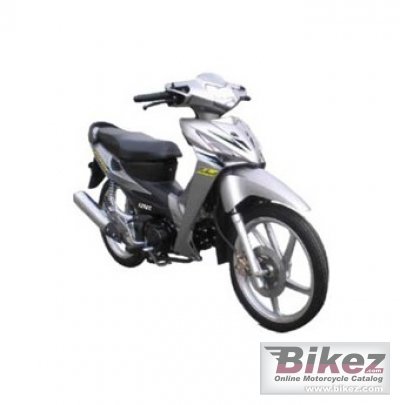

Eagle-Wing DB125Z Commuter 20102010 Eagle-Wing DB125Z Commuter specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Eagle-Wing DB125Z Commuter |
| Model year | 2010 |
| Category | Scooter |
| Rating | 3.1 View the detailed rating of value for money, design and look, reliability, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 125.0 ccm (7.63 cubic inches) |
| Engine type | Single cylinder, four-stroke |
| Power output | 8.5 HP (6.2 kW)) @ 8000 RPM |
| Torque | 8.5 Nm (0.9 kgf-m or 6.3 ft.lbs) |
| Top speed | 105.0 km/h (65.2 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 52.0 x 57.8 mm (2.0 x 2.3 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Gearbox | 4-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Brakes Front |
| Front suspension | Hydraulic, upside down fork |
| Rear suspension | Hydraulic, central mono-shock |
| Front tire | 2.50-17 |
| Rear tire | 2.50-17 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 75.0 kg (165.3 pounds) |
| Power/weight ratio | 0.1127 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Overall height | 1065 mm (41.9 inches) |
| Overall length | 1860 mm (73.2 inches) |
| Overall width | 690 mm (27.2 inches) |
| Ground clearance | 140 mm (5.5 inches) |
| Wheelbase | 1210 mm (47.6 inches) |
| Fuel capacity | 4.50 litres (1.19 US gallons) |
| Other specifications | |
| Color options | Silver |
| Starter | Electric & kick |
| Comments | South-African brand. |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | Check out our overview of motorcycle webshops at Bikez.info. |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 10 Eagle-Wing DB125Z Commuter discussion group or the general Eagle-Wing discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2010 Eagle-Wing DB125Z Commuter discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Eagle-Wing bike | |
Reliability for the 2010 Eagle-Wing DB125Z Commuter:  (73.3 out of 100)Click here for complete rating. |
|
