Eagle-Wing DB125 Road 20102010 Eagle-Wing DB125 Road specifications, pictures, reviews and rating |

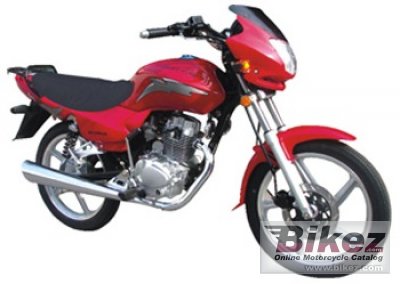

 2010 Eagle-Wing DB125 Road. Picture credits - Eagle-Wing. Submit more pictures. |
|
| General information | |
|---|---|
| Model | Eagle-Wing DB125 Road |
| Year of manufacture | 2010 |
| Type | Allround |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 125.0 ccm (7.63 cubic inches) |
| Type of engine | Single cylinder, four-stroke |
| Output | 11.4 HP (8.3 kW)) @ 8000 RPM |
| Torque | 10.0 Nm (1.0 kgf-m or 7.4 ft.lbs) @ 7500 RPM |
| Top speed | 105.0 km/h (65.2 mph) |
| Compression | 9.0:1 |
| Bore x stroke | 51.5 x 60.0 mm (2.0 x 2.4 inches) |
| Fuel system | Carburettor |
| Ignition | CDI |
| Gearbox | 5-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Front suspension | Hydraulic, upside down fork |
| Rear suspension | Hydraulic, central mono-shock |
| Front tire | 2.75-18 |
| Rear tire | 3.0-18 |
| Front brakes | Single disc |
| Rear brakes | Expanding brake (drum brake) |
| Physical measures and capacities | |
| Dry weight | 75.0 kg (165.3 pounds) |
| Power/weight ratio | 0.1520 HP/kg |
| Seat height | 880 mm (34.6 inches) If adjustable, lowest setting. |
| Overall height | 1120 mm (44.1 inches) |
| Overall length | 1850 mm (72.8 inches) |
| Overall width | 710 mm (28.0 inches) |
| Ground clearance | 180 mm (7.1 inches) |
| Wheelbase | 1400 mm (55.1 inches) |
| Fuel capacity | 13.00 litres (3.43 US gallons) |
| Other specifications | |
| Color options | Red/black |
| Starter | Electric & kick |
| Comments | South-African brand. |
