| General information |
|---|

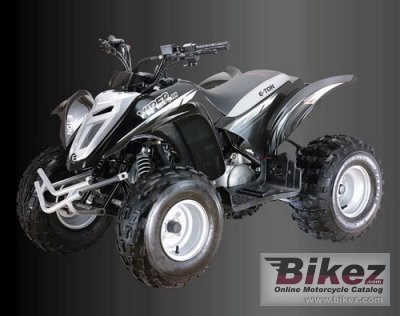

| Model: | E-Ton Viper 90R |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 88.4 ccm (5.39 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Top speed: | 48.0 km/h (29.8 mph) |
| Compression: | 10.6:1 |
| Bore x stroke: | 47.0 x 51.0 mm (1.9 x 2.0 inches) |
| Fuel system: | Carburettor |
| Ignition: | C.D.I. |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | CVT |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | A-Arm and Adjustable shocks |
| Front wheel travel: | 50 mm (2.0 inches) |
| Rear suspension: | Swing Arm and Adjustable shocks |
| Rear wheel travel: | 85 mm (3.3 inches) |
| Front tire: | 18/7-8 |
| Rear tire: | 18/9-8 |
| Front brakes: | Expanding brake (drum brake) |
| Diameter: | 85 mm (3.3 inches) |
| Rear brakes: | Single disc |
| Diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 113.0 kg (249.1 pounds) |
| Seat height: | 680 mm (26.8 inches) If adjustable, lowest setting. |
| Overall height: | 900 mm (35.4 inches) |
| Overall length: | 1500 mm (59.1 inches) |
| Overall width: | 850 mm (33.5 inches) |
| Ground clearance: | 120 mm (4.7 inches) |
| Wheelbase: | 930 mm (36.6 inches) |
| Fuel capacity: | 3.60 litres (0.95 gallons) |
| Other specifications |
|---|
| Color options: | N/A |
| Starter: | Electric & kick |
| Electrical: | 4Ah / 12V battery |
