| General moped information |
|---|

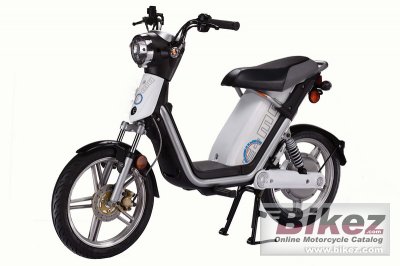

| Model: | E-Ton E-MO Plus Jr. EV3D |
| Year: | 2011 |
| Category: | Scooter |
| Rating: | Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission |
|---|
| Engine type: | Electric |
| Engine details: | 48V Brushless DC Motor |
| Top speed: | 25.0 km/h (15.5 mph) |
| Cooling system: | Air |
| Gearbox: | Automatic |
| Emission details: | No emissions |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | Telescopic Fork |
| Front wheel travel: | 55 mm (2.2 inches) |
| Rear suspension: | Swing arm |
| Rear wheel travel: | 27 mm (1.1 inches) |
| Front tyre: | 2.25-14 |
| Rear tyre: | 2.25-14 |
| Front brakes: | Single disc |
| Front brakes diameter: | 155 mm (6.1 inches) |
| Rear brakes: | Expanding brake (drum brake) |
| Rear brakes diameter: | 85 mm (3.3 inches) |
| Wheels: | Aluminum rims 1.5*14´ front and rear |
| Seat: | Single seat |
| Physical measures and capacities |
|---|
| Dry weight: | 52.8 kg (116.4 pounds) |
| Seat height: | 772 mm (30.4 inches) If adjustable, lowest setting. |
| Overall height: | 1,046 mm (41.2 inches) |
| Overall length: | 1,557 mm (61.3 inches) |
| Ground clearance: | 150 mm (5.9 inches) |
| Wheelbase: | 1,056 mm (41.6 inches) |
| Other specifications |
|---|
| Color options: | White, Orange |
| Starter: | Electric |
| Electrical: | 12V |
| Light: | 12V 35W/35W headlights |
| Comments: | LiMn2O4 battery, ether 10 or 15 Ah. Charging time: 2.0hrs/100%(10Ah, 3.0hrs/100%(15Ah.) Portable charger AC 90~132 V / 180~264V. Range 40 km/(10Ah) or 60km/(15Ah). |
