General information |
---|

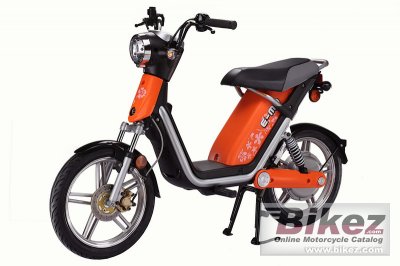

Model | E-Ton E-MO EV3C |
Year | 2011 |
Category | Scooter |
Rating | Do you know this bike? Click here to rate it. We miss 1 vote to show the rating. |
Engine and transmission |
---|
Engine type | Electric |
Engine details | 48V Brushless DC Motor |
Gearbox | Automatic |
Chassis, suspension, brakes and wheels |
---|
Front suspension | Telescopic Fork |
Front wheel travel | 55 mm (2.2 inches) |
Rear suspension | Swing arm |
Rear wheel travel | 27 mm (1.1 inches) |
Front tire | 2.25-14 |
Rear tire | 2.25-14 |
Front brakes | Single disc |
Diameter | 155 mm (6.1 inches) |
Rear brakes | Expanding brake (drum brake) |
Diameter | 85 mm (3.3 inches) |
Wheels | Aluminum rims 1.5*14ยด front and rear |
Physical measures and capacities |
---|
Dry weight | 52.8 kg (116.4 pounds) |
Seat height | 772 mm (30.4 inches) If adjustable, lowest setting. |
Overall height | 1046 mm (41.2 inches) |
Overall length | 1557 mm (61.3 inches) |
Overall width | 655 mm (25.8 inches) |
Ground clearance | 150 mm (5.9 inches) |
Wheelbase | 1056 mm (41.6 inches) |
Other specifications |
---|
Color options | Green, White, Black,Orange |
Starter | Electric |
Electrical | 12V |
Light | 12V 35W/35W headlights |
Comments | LiMn2O4 battery, ether 10 or 15 Ah. Charging time: 2.0hrs/100%(10Ah, 3.0hrs/100%(15Ah.) Range 40 km/(10Ah) or 60km/(15Ah). |
