| General information |
|---|

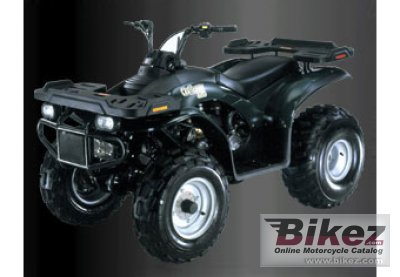

| Model: | E-Ton Challenger CXL-150 |
| Year: | 2012 |
| Category: | ATV |
| Rating: | Do you know this bike?
Click here to rate it. We miss 1 vote to show the rating. |
| Engine and transmission |
|---|
| Displacement: | 149.50 ccm (9.12 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Top speed: | 62.0 km/h (38.5 mph) |
| Compression: | 9.7:1 |
| Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) |
| Fuel system: | Carburettor |
| Fuel control: | Single Overhead Cams (SOHC) |
| Ignition: | C.D.I. |
| Cooling system: | Oil & air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Driveline: | CVT with reverse |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | A-Arm and Adjustable shocks |
| Front wheel travel: | 50 mm (2.0 inches) |
| Rear suspension: | Swing Arm and Adjustable shocks |
| Rear wheel travel: | 85 mm (3.3 inches) |
| Front tyre: | 21/7-10 |
| Rear tyre: | 22/10-10 |
| Front brakes: | Expanding brake (drum brake). Hydraulic |
| Front brakes diameter: | 110 mm (4.3 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 190 mm (7.5 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 172.0 kg (379.2 pounds) |
| Seat height: | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,070 mm (42.1 inches) |
| Overall length: | 1,730 mm (68.1 inches) |
| Overall width: | 980 mm (38.6 inches) |
| Ground clearance: | 160 mm (6.3 inches) |
| Wheelbase: | 1,115 mm (43.9 inches) |
| Fuel capacity: | 6.50 litres (1.72 gallons) |
| Other specifications |
|---|
| Color options: | Green, Red, Blue, Silver, Camo |
| Starter: | Electric & kick |
