| General information |
|---|

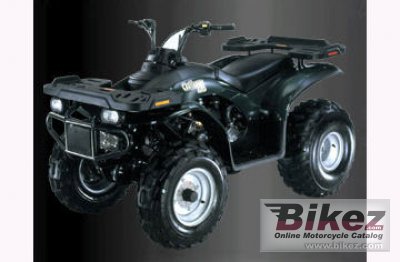

| Model: | E-Ton Challenger 150 CXL-150 |
| Year: | 2010 |
| Category: | ATV |
| Rating: | 62 out of 100. Show full rating and compare with other bikes |
| Engine and transmission |
|---|
| Displacement: | 149.50 ccm (9.12 cubic inches) |
| Engine type: | Single cylinder, four-stroke |
| Compression: | 9.7:1 |
| Bore x stroke: | 57.4 x 57.8 mm (2.3 x 2.3 inches) |
| Fuel system: | Carburettor |
| Ignition: | CDI |
| Cooling system: | Air |
| Gearbox: | Automatic |
Transmission type,
final drive: | Belt |
| Chassis, suspension, brakes and wheels |
|---|
| Front suspension: | A-Arm |
| Front wheel travel: | 50 mm (2.0 inches) |
| Rear suspension: | Swing arm |
| Rear wheel travel: | 85 mm (3.3 inches) |
| Front tyre: | 21/7-10 |
| Rear tyre: | 22/10-10 |
| Front brakes: | Expanding brake (drum brake) |
| Front brakes diameter: | 155 mm (6.1 inches) |
| Rear brakes: | Single disc |
| Rear brakes diameter: | 130 mm (5.1 inches) |
| Physical measures and capacities |
|---|
| Dry weight: | 172.0 kg (379.2 pounds) |
| Seat height: | 760 mm (29.9 inches) If adjustable, lowest setting. |
| Overall height: | 1,070 mm (42.1 inches) |
| Overall length: | 1,730 mm (68.1 inches) |
| Overall width: | 980 mm (38.6 inches) |
| Ground clearance: | 160 mm (6.3 inches) |
| Wheelbase: | 1,115 mm (43.9 inches) |
| Fuel capacity: | 6.50 litres (1.72 gallons) |
| Other specifications |
|---|
| Color options: | Green, Red, Blue, Silver, Camo |
| Starter: | Electric & kick |
| Comments: | Off-road ATV with reverse. |
