E-max 120L 2010

2010 E-max 120L specifications, pictures, reviews and rating

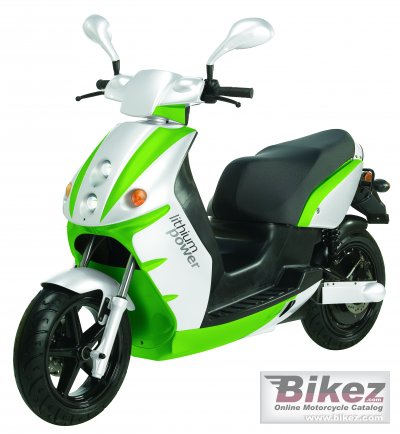

2010 E-max 120L. Picture credits - E-max. Submit more pictures.

2010 E-max 120L

More pictures...

Discuss this bike
Rate this motorbike
This bike's rating
Write a review

Sell this motorcycle
Such bikes for sale
List all mopeds
Tip a friend
List related bikes

E-max's profilation of this bike

The location of the 13-inch wheel motor in the rear wheel enables smooth power transmission. It is maintenance free and due to the immense torque does not need a transmission.

General moped information
Model:	E-max 120L
Year:	2010
Category:	Scooter
Rating:	Do you know this bike? Click here to rate it. We miss 2 votes to show the rating.
Engine and transmission
Engine type:	Electric
Power:	2.68 HP (2.0 kW))
Top speed:	60.0 km/h (37.3 mph)
Cooling system:	Air
Gearbox:	Automatic
Clutch:	No clutch or transmission
Chassis, suspension, brakes and wheels
Front suspension:	Oil/gass pressure
Rear suspension:	Oil/gass pressure
Front tyre:	130/60-13
Rear tyre:	130/60-13
Front brakes:	Single disc. Hydraulic floating disc brake
Rear brakes:	Single disc. Hydraulic floating disc brake
Physical measures and capacities
Dry weight:	135.0 kg (297.6 pounds)
Power/weight ratio:	0.0199 HP/kg
Other specifications
Color options:	Black, blue, yellow, red, green, gray, white
Starter:	Electric
Comments:	13´´ high torque maintenance free motor. 1.5-5 hours charging time. Lithium ion battery, 15 x 3.2V/60Ah. Operating range 90-115 km. German brand.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 10 E-max 120L discussion group or the general E-max discussion group.
Related bikes	List related bikes for comparison of specs.
