E-max 110S 2010

2010 E-max 110S specifications, pictures, reviews and rating

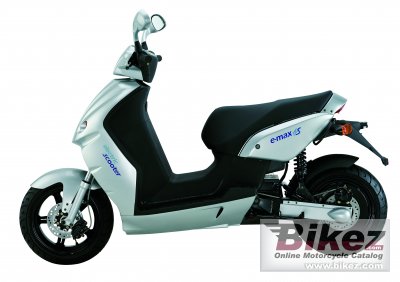

2010 E-max 110S. Picture credits - E-max. Submit more pictures.

E-max's profilation of this bike

The motor was exclusively developed by e-max for the application in electric scooters. The location of the 13-inch wheel motor in the rear wheel enables smooth power transmission.

General moped information
Model:	E-max 110S
Year:	2010
Category:	Scooter
Rating:	57.3 out of 100. Show full rating and compare with other bikes
Engine and transmission
Engine type:	Electric
Power:	5.36 HP (3.9 kW))
Top speed:	60.0 km/h (37.3 mph)
Cooling system:	Air
Gearbox:	Automatic
Transmission type, final drive:	Shaft drive (cardan)
Clutch:	No clutch
Chassis, suspension, brakes and wheels
Front suspension:	Oil/gas pressure
Rear suspension:	Oil/gas pressure
Front tyre:	130/60-13
Rear tyre:	130/60-13
Front brakes:	Single disc. Hydraulic floating disc brakes
Rear brakes:	Single disc. Hydraulic floating disc brakes
Physical measures and capacities
Dry weight:	91.0 kg (200.6 pounds)
Weight incl. oil, gas, etc:	191.0 kg (421.1 pounds)
Power/weight ratio:	0.0589 HP/kg
Other specifications
Color options:	Black, blue, gray, white, red, yellow, green
Starter:	Electric
Comments:	13´´ high torque maintenance free motor. 4 x 12V/60Ah silicone battery. 4-8 hours charging time. Operating range 70-90 km. Made in Germany.
Further information
Insurance costs	Compare US insurance quotes from the nation's top providers.
Parts finder	Chaparral provides online schematics & OEM parts for the US. 2Wheels offers first time 2Wheels buyers $10.00 off now. Same day shipment to the US. Also check out our overview of motorcycle webshops at Bikez.info.
Ask questions	Join the 10 E-max 110S discussion group or the general E-max discussion group.
Related bikes	List related bikes for comparison of specs.

General moped information

Model:

E-max 110S

Year:

2010

Category:

Scooter

Rating:

57.3 out of 100. Show full rating and compare with other bikes

Engine and transmission

Engine type:

Electric

Power:

5.36 HP (3.9 kW))

Top speed:

60.0 km/h (37.3 mph)

Cooling system:

Air

Gearbox:

Automatic

Transmission type,
final drive:

Shaft drive (cardan)

Clutch:

No clutch

Chassis, suspension, brakes and wheels

Front suspension:

Oil/gas pressure

Rear suspension:

Oil/gas pressure

Front tyre:

130/60-13

Rear tyre:

130/60-13

Front brakes:

Single disc. Hydraulic floating disc brakes

Rear brakes:

Single disc. Hydraulic floating disc brakes

Physical measures and capacities

Dry weight:

91.0 kg (200.6 pounds)

Weight incl. oil, gas, etc:

191.0 kg (421.1 pounds)

Power/weight ratio:

0.0589 HP/kg

Other specifications

Color options:

Black, blue, gray, white, red, yellow, green

Starter:

Electric

Comments:

13´´ high torque maintenance free motor. 4 x 12V/60Ah silicone battery. 4-8 hours charging time. Operating range 70-90 km. Made in Germany.
