General information |
|
Motorcycle name
|

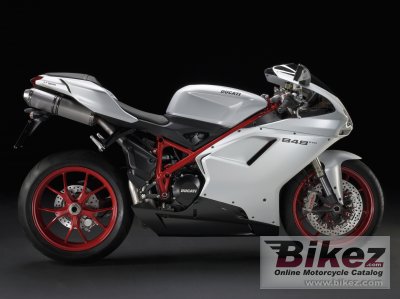

Ducati Superbike 848 Evo |
|
Year of manufacture
|
2012 |
|
Type
|
Sport |
|
Rating
|
3.8 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Engine size
|
849.4 ccm (51.83 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Engine details
|
L-twin |
|
Output
|
140.0 HP (102.2 kW)) @ 10500 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 9750 RPM |
|
Compression
|
13.2:1 |
|
Bore x stroke
|
94.0 x 61.2 mm (3.7 x 2.4 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, elliptical throttle bodies |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate with hydraulic control |
|
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39 |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame in ALS 450 |
|
Rake (fork angle)
|
24.5° |
|
Front suspension
|
Showa 43mmfully adjustable usd forks |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
180/55-17 |
|
Front brakes
|
Double disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. 2-piston calliper |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Power/weight ratio
|
0.8333 HP/kg |
|
Seat height
|
830 mm (32.7 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
15.50 litres (4.10 US gallons) |
|
Other specifications |
|
Color options
|
Red/black, Dark Stealth/black, White/black |
|
Starter
|
Electric |
|
Instruments
|
Digital MotoGP derived unit with displays for: Speed, rev counter, lap times, time, air temp, coolant temp, battery voltage, A and B trips, fuel reserve trip, scheduled maintenance. Warning lights for: Neutral, turn signals, high-beam, rev-limit, oil pressure, fuel reserve. |
|
Factory warranty
|
2 years unlimited mileage |
