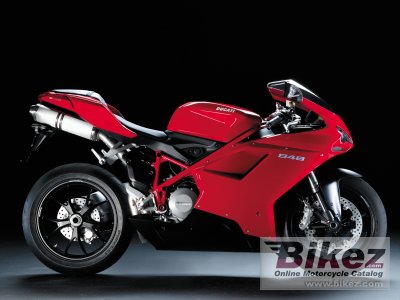

Ducati Superbike 848 20092009 Ducati Superbike 848 specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| With a dry weight of just 168kg (369lb) the agile 848 is an amazing 20kg (44lb) lighter and 30% more powerful than its predecessor, enabling the middleweight to deliver impressive performances whether riding through mid-town traffic or racing through track-day competition. |
| General information | |
|---|---|
| Model | Ducati Superbike 848 |
| Year model | 2009 |
| Type | Sport |
| Rating | 3.5 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Engine size | 849.4 ccm (51.83 cubic inches) |
| Type of engine | V2, four-stroke |
| Effect | 134.0 HP (97.8 kW)) @ 10000 RPM |
| Torque | 96.0 Nm (9.8 kgf-m or 70.8 ft.lbs) @ 8250 RPM |
| Compression | 12.0:1 |
| Bore x stroke | 94.0 x 61.2 mm (3.7 x 2.4 inches) |
| Fuel system | Injection. Marelli electronic fuel injection, elliptical throttle bodies. |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate with hydraulic control |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and lambda probe. Twin stainless steel mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame in ALS 450 |
| Rake (fork angle) | 24.5° |
| Front suspension | Showa 43 mm fully adjustable upside-down fork |
| Front wheel travel | 127 mm (5.0 inches) |
| Rear suspension | Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
| Rear wheel travel | 120 mm (4.7 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 168.0 kg (370.4 pounds) |
| Power/weight ratio | 0.7976 HP/kg |
| Seat height | 830 mm (32.7 inches) If adjustable, lowest setting. |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 15.50 litres (4.10 US gallons) |
| Other specifications | |
| Color options | Red (Red/Racing Grey), Pearl White (Racing Grey/Black) |
