General information |
|
Model
|

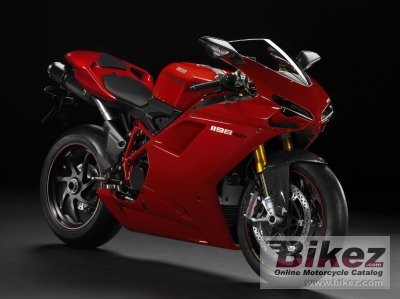

Ducati Superbike 1198 SP |
|
Year
|
2011 |
|
Category
|
Sport |
|
Rating
|
3.3 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
|
Engine and transmission |
|
Displacement
|
1198.4 ccm (73.13 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
170.0 HP (124.1 kW)) @ 9750 RPM |
|
Torque
|
131.5 Nm (13.4 kgf-m or 97.0 ft.lbs) @ 8000 RPM |
|
Compression
|
12.7:1 |
|
Bore x stroke
|
106.0 x 67.9 mm (4.2 x 2.7 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, elliptical throttle bodies |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Dry multiplate with hydraulic control slupper clutch |
|
Driveline
|
Primary drive: Straight cut gears, Ratio 1.84:1. Chain; Front sprocket 15; Rear sprocket 38 |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame in ALS 450 |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Ohlins 43mm fully adjustable usd forks with TiN |
|
Front wheel travel
|
127 mm (5.0 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Öhlins TTX monoshock with top-out spring. Aluminium single-sided swingarm |
|
Rear wheel travel
|
120 mm (4.7 inches) |
|
Front tire
|
120/70-17 |
|
Rear tire
|
190/55-17 |
|
Front brakes
|
Double disc. Semi-floating discs, radially mounted Brembo Monobloc 4-piston callipers |
|
Diameter
|
330 mm (13.0 inches) |
|
Rear brakes
|
Single disc. 2-piston |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
7-spoke forged light alloy |
|
Seat
|
Dual seat |
|
Physical measures and capacities |
|
Dry weight
|
168.0 kg (370.4 pounds) |
|
Power/weight ratio
|
1.0119 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
18.00 litres (4.76 US gallons) |
|
Other specifications |
|
Color options
|
Red (red/black), Diamond black (red/black) |
|
Starter
|
Electric |
