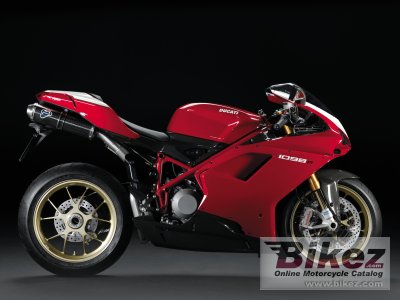

Ducati Superbike 1098R 20092009 Ducati Superbike 1098R specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The ´R´ is a race bike, pure and simple. Its competition specification and superior components together with advanced electronics and race-proven chassis technology deliver a level of performance that empowers with confidence and capability. |
| General information | |
|---|---|
| Model | Ducati Superbike 1098R |
| Model year | 2009 |
| Category | Sport |
| Rating | 3.6 Check out the detailed rating of racing track capabilities, engine performance, accident risk, etc. Compare with any other bike. |
| Engine and transmission | |
| Displacement | 1198.4 ccm (73.13 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 180.0 HP (131.4 kW)) @ 9750 RPM |
| Torque | 134.4 Nm (13.7 kgf-m or 99.1 ft.lbs) @ 7750 RPM |
| Compression | 12.8:1 |
| Bore x stroke | 106.0 x 67.9 mm (4.2 x 2.7 inches) |
| Fuel system | Injection. Marelli electronic fuel injection, elliptical throttle bodies. |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Dry multiplate with hydraulic control slipper clutch |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter and 2 lambda probes. Twin stainless steel and titanium mufflers |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame in ALS 450 |
| Rake (fork angle) | 24.5° |
| Front suspension | Ohlins 43mm fully adjustable upside-down fork with TiN |
| Front wheel travel | 120 mm (4.7 inches) |
| Rear suspension | Progressive linkage with fully adjustable Ohlins TTXR monoshock with top-out spring. Aluminium single-sided swingarm |
| Rear wheel travel | 127 mm (5.0 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 190/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 330 mm (13.0 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 165.0 kg (363.8 pounds) |
| Power/weight ratio | 1.0909 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 15.50 litres (4.10 US gallons) |
| Other specifications | |
| Color options | Red (Red/Racing Gold) |
