General information |
|
Motorcycle name
|

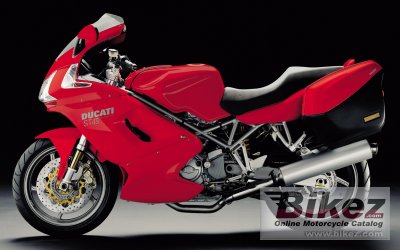

Ducati ST 4 S ABS |
|
Year model
|
2004 |
|
Type
|
Sport touring |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Engine size
|
996.0 ccm (60.78 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Effect
|
117.0 HP (85.4 kW)) @ 8750 RPM |
|
Torque
|
98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 7000 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
98.0 x 66.0 mm (3.9 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Showa 43 mm adjustable preload upside-down fork with Tin |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Ohlins monoshock with remote control preload adjustable. Aluminium swingarm. |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Weight incl. oil, gas, etc
|
212.0 kg (467.4 pounds) |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Overall height
|
1274 mm (50.2 inches) |
|
Overall length
|
2070 mm (81.5 inches) |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Reserve fuel capacity
|
6.00 litres (1.59 US gallons) |
|
Other specifications |
|
Color options
|
Metallic grey. Tank: Red, yellow, metallic dark grey.
|
|
Comments
|
ABS control of front and rear brake |
