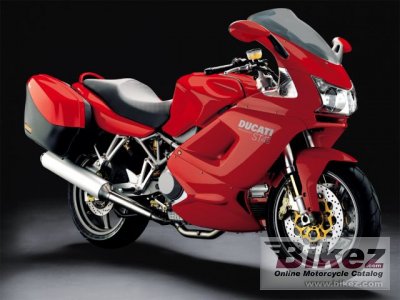

Ducati ST 4 S 20042004 Ducati ST 4 S specifications, pictures, reviews and rating |
| General information | |
|---|---|
| Model name | Ducati ST 4 S |
| Model year | 2004 |
| Category | Sport touring |
| Rating | 3.7 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Displacement | 996.0 ccm (60.78 cubic inches) |
| Engine type | V2, four-stroke |
| Power output | 117.0 HP (85.4 kW)) @ 8750 RPM |
| Torque | 98.0 Nm (10.0 kgf-m or 72.3 ft.lbs) @ 7000 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 98.0 x 66.0 mm (3.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel trellis |
| Rake (fork angle) | 24.0° |
| Front suspension | Showa 43 mm adjustable preload upside-down fork with Tin |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Progressive linkage with fully adjustable Ohlins monoshock with remote control preload adjustable. Aluminium swingarm. |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Weight incl. oil, gas, etc | 212.0 kg (467.4 pounds) |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Overall height | 1274 mm (50.2 inches) |
| Overall length | 2070 mm (81.5 inches) |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Reserve fuel capacity | 6.00 litres (1.59 US gallons) |
| Other specifications | |
| Color options | Metallic grey. Tank: Red, yellow, metallic dark grey. |
| Modifications compared to previous model | Rider ergonomics have been greatly improved in the ST family. An all-new seat has been created adding comfort and reducing rider and passenger "slip" when braking. Innovative height adjustable handlebars matched with "reach" adjustable clutch and brake levers allow you to find perfect riding comfort no matter your size or riding style. |
