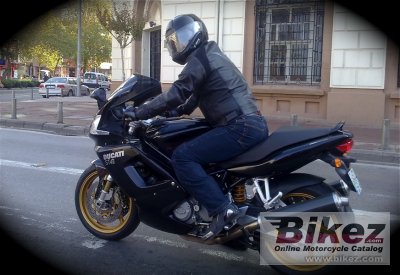

Ducati ST4 S ABS 20052005 Ducati ST4 S ABS specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| Add the confidence of the new ABS system to the unique and beautiful sound of the Ducati big-bore twin and you have the ultimate Sport Touring motorcycle. |
| General information | |
|---|---|
| Model name | Ducati ST4 S ABS |
| Year of manufacture | 2005 |
| Type | Sport touring |
| Rating | 3.6 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
| Engine and transmission | |
| Engine size | 996.0 ccm (60.78 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 89.1 HP (65.0 kW)) @ 9500 RPM |
| Torque | 105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 7250 RPM |
| Compression | 11.5:1 |
| Bore x stroke | 98.0 x 66.0 mm (3.9 x 2.6 inches) |
| Valves per cylinder | 4 |
| Fuel system | Injection. Marelli electronic fuel injection, 50 mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Liquid |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | Wet multiplate with hydraulic control |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel trellis |
| Rake (fork angle) | 24.0° |
| Front suspension | Showa 43 mm upside-down fully adjustable fork with TiN surface treatment |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Progressive linkage with fully adjustable Öhlins monoshock with remote control preload adjustament. Aluminium swingarm |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 206.0 kg (454.2 pounds) |
| Power/weight ratio | 0.4325 HP/kg |
| Seat height | 820 mm (32.3 inches) If adjustable, lowest setting. |
| Wheelbase | 1430 mm (56.3 inches) |
| Fuel capacity | 21.00 litres (5.55 US gallons) |
| Other specifications | |
| Starter | Electric |
| Comments | ABS brakes |
| Update specs | Report missing specs or required updates. |
| Further information | |
| Insurance costs | Compare US insurance quotes from the nation's top providers. |
| Parts finder | CMSNL provides
online schematics & OEM parts |
| Maintenance | Find parts, fluids. filters, maintenance tools and service manuals at Amazon.com. |
| Ask questions | Join the 05 Ducati ST4 S ABS discussion group or the general Ducati discussion group. |
| Related bikes | List related bikes for comparison of specs. |
| Compare with another motorcycle | |
Discussions for every bike
Bikez has discussion forums for every bike. View comments, questions and answers at the 2005 Ducati ST4 S ABS discussion group. You can sign up for e-mail notifications when other riders answer you. If you have extensive experience with the MC, please send us a review. If you consider buying this bike, you should view the list of related motorbikes Look at photos. Compare technical specs. And check out the rating of the bike's engine performance, reliability, repair costs, etc. You can compare the rating with other bikes.| Rating sample for this Ducati bike | |
Fun-factor for the 2005 Ducati ST4 S ABS:  (81.9 out of 100)Click here for complete rating. |
|
