General information |
|
Model
|

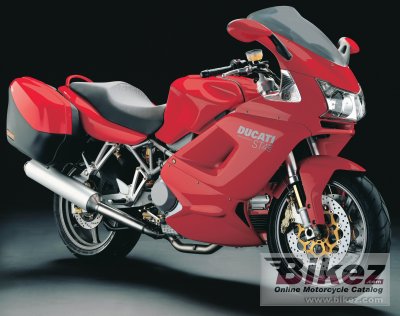

Ducati ST4 S |
|
Year
|
2005 |
|
Category
|
Sport touring |
|
Rating
|
3.8 See the detailed rating of touring capabilities, reliability, accident risk, etc. Compare with any other motorbike. |
|
Engine and transmission |
|
Displacement
|
996.0 ccm (60.78 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power
|
89.1 HP (65.0 kW)) @ 9500 RPM |
|
Torque
|
105.0 Nm (10.7 kgf-m or 77.4 ft.lbs) @ 7250 RPM |
|
Compression
|
11.5:1 |
|
Bore x stroke
|
98.0 x 66.0 mm (3.9 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 50 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate with hydraulic control |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Showa 43 mm upside-down fully adjustable fork with TiN surface treatment |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Öhlins monoshock with remote control preload adjustament. Aluminium swingarm |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
201.0 kg (443.1 pounds) |
|
Power/weight ratio
|
0.4433 HP/kg |
|
Seat height
|
820 mm (32.3 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1430 mm (56.3 inches) |
|
Fuel capacity
|
21.00 litres (5.55 US gallons) |
|
Other specifications |
|
Color options
|
Glossy black/metallic dark grey, metallic dark grey/metallic dark grey/red, red/metallic dark grey |
|
Starter
|
Electric |
