General information |
|
Motorcycle name
|

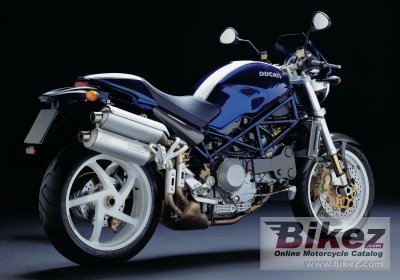

Ducati Monster S4R |
|
Model year
|
2006 |
|
Category
|
Naked bike |
|
Rating
|
3.2 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
|
Engine and transmission |
|
Displacement
|
996.0 ccm (60.78 cubic inches) |
|
Engine type
|
V2, four-stroke |
|
Power output
|
115.5 HP (84.3 kW)) @ 8750 RPM |
|
Torque
|
99.0 Nm (10.1 kgf-m or 73.0 ft.lbs) @ 7000 RPM |
|
Compression
|
11.6:1 |
|
Bore x stroke
|
98.0 x 66.0 mm (3.9 x 2.6 inches) |
|
Valves per cylinder
|
4 |
|
Fuel system
|
Injection. Marelli electronic fuel injection, 50 mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Liquid |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Exhaust system
|
2 aluminium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel trellis |
|
Rake (fork angle)
|
24.0° |
|
Front suspension
|
Showa 43 mm upside-down fully adjustable fork with TiN surface treatment |
|
Front wheel travel
|
130 mm (5.1 inches) |
|
Rear suspension
|
Progressive linkage with fully adjustable Showa monoshock. Aluminium single-sided swingarm |
|
Rear wheel travel
|
148 mm (5.8 inches) |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc |
|
Diameter
|
245 mm (9.6 inches) |
|
Physical measures and capacities |
|
Dry weight
|
181.0 kg (399.0 pounds) |
|
Power/weight ratio
|
0.6379 HP/kg |
|
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1440 mm (56.7 inches) |
|
Fuel capacity
|
15.00 litres (3.96 US gallons) |
|
Other specifications |
|
Color options
|
Red with white stripe-red-white, Blue with white stripe-blue-white, Black with white stripe-matte black-white, Red with black stripe-red-black |
|
Starter
|
Electric |
