General information |
Model name
|

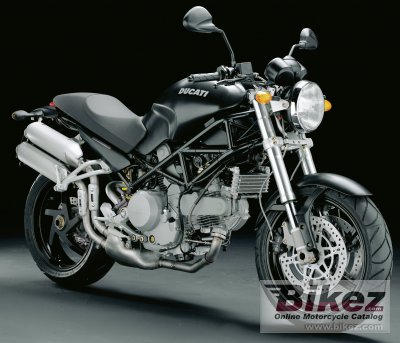

Ducati Monster S2R Dark |
Year
|
2005 |
Category
|
Naked bike |
Rating
|
3.6 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
Engine and transmission |
Displacement
|
803.0 ccm (49.00 cubic inches) |
Engine type
|
Twin, four-stroke |
Power
|
76.0 HP (55.5 kW)) @ 9500 RPM |
Torque
|
74.0 Nm (7.5 kgf-m or 54.6 ft.lbs) @ 6500 RPM |
Compression
|
10.5:1 |
Bore x stroke
|
88.0 x 66.0 mm (3.5 x 2.6 inches) |
Fuel system
|
Injection. Marelli electronic fuel injection, 45 mm throttle body |
Gearbox
|
6-speed |
Transmission type
|
Chain (final drive) |
Clutch
|
APTC wet multiplate with hydraulic control |
Chassis, suspension, brakes and wheels |
Frame type
|
Tubular steel trellis |
Rake (fork angle)
|
24.0° |
Front suspension
|
43 mm upside-down fork |
Front wheel travel
|
130 mm (5.1 inches) |
Rear suspension
|
Progressive linkage with Sachs adjustable monoshock. Single-sided aluminium swingarm |
Rear wheel travel
|
148 mm (5.8 inches) |
Front tire
|
120/70-ZR17 |
Rear tire
|
180/55-ZR17 |
Front brakes
|
Double disc |
Diameter
|
300 mm (11.8 inches) |
Rear brakes
|
Single disc |
Diameter
|
245 mm (9.6 inches) |
Physical measures and capacities |
Dry weight
|
173.0 kg (381.4 pounds) |
Power/weight ratio
|
0.4395 HP/kg |
Seat height
|
800 mm (31.5 inches) If adjustable, lowest setting. |
Wheelbase
|
1440 mm (56.7 inches) |
Fuel capacity
|
14.00 litres (3.70 US gallons) |
Other specifications |
Color options
|
Matte black/black |
Starter
|
Electric |
