General information |
|
Motorcycle name
|

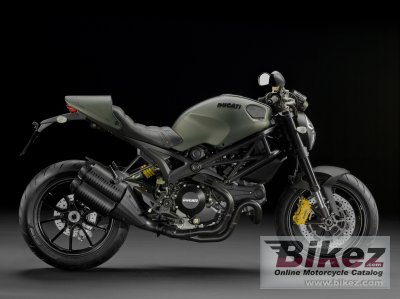

Ducati Monster Diesel |
|
Year of manufacture
|
2013 |
|
Type
|
Naked bike |
|
Rating
|
Do you know this bike?
Click here to rate it. We miss 2 votes to show the rating. |
|
Engine and transmission |
|
Engine size
|
1078.0 ccm (65.78 cubic inches) |
|
Type of engine
|
V2, four-stroke |
|
Output
|
98.6 HP (71.9 kW)) @ 7500 RPM |
|
Torque
|
103.0 Nm (10.5 kgf-m or 76.0 ft.lbs) @ 6000 RPM |
|
Compression
|
11.3:1 |
|
Bore x stroke
|
98.0 x 71.5 mm (3.9 x 2.8 inches) |
|
Valves per cylinder
|
2 |
|
Fuel system
|
Injection. Siemens electronic fuel injection, 45mm throttle body |
|
Fuel control
|
Desmodromic valve control |
|
Cooling system
|
Air |
|
Gearbox
|
6-speed |
|
Transmission type
|
Chain (final drive) |
|
Clutch
|
Wet multiplate with hydraulic control |
|
Driveline
|
Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.84. |
|
Emission details
|
Euro 3 |
|
Exhaust system
|
Lightweight 2-1-2 system with catalytic converter and two lambda probes. Twin aluminium mufflers |
|
Chassis, suspension, brakes and wheels |
|
Frame type
|
Tubular steel Trellis frame |
|
Rake (fork angle)
|
24.0° |
|
Trail
|
87 mm (3.4 inches) |
|
Front suspension
|
Marzocchi 43mm fully adjustable usd forks |
|
Rear suspension
|
Progressive with preload and rebound Sachs adjustable monoshock |
|
Front tire
|
120/70-ZR17 |
|
Rear tire
|
180/55-ZR17 |
|
Front brakes
|
Double disc. ABS. Four-piston calipers. |
|
Diameter
|
320 mm (12.6 inches) |
|
Rear brakes
|
Single disc. ABS. Two-piston calipers. |
|
Diameter
|
245 mm (9.6 inches) |
|
Wheels
|
10-spoke in light alloy |
|
Physical measures and capacities |
|
Dry weight
|
169.0 kg (372.6 pounds) |
|
Weight incl. oil, gas, etc
|
187.0 kg (412.3 pounds) |
|
Power/weight ratio
|
0.5833 HP/kg |
|
Seat height
|
810 mm (31.9 inches) If adjustable, lowest setting. |
|
Wheelbase
|
1450 mm (57.1 inches) |
|
Fuel capacity
|
13.50 litres (3.57 US gallons) |
|
Other specifications |
|
Color options
|
Green matte |
|
Starter
|
Electric |
|
Instruments
|
Digital unit displaying Speedometer, rev counter, time, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, warning ABS, overrev, DTC, immobilizer. Ready for DDA system. |
|
Factory warranty
|
2 years unlimited mileage |
