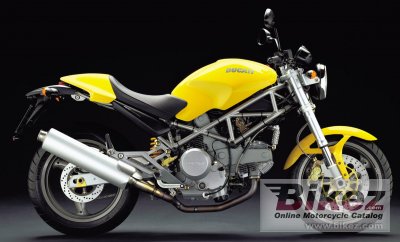

Ducati Monster 800 i.e. 20042004 Ducati Monster 800 i.e. specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The Monster 800 - lots of torque, horsepower and road going savvy - gets you going in style. 800 ccs of fuel-injected fun combined with a Ducati Superbike trellis frame means a perfect balance between power and handling. |
| General information | |
|---|---|
| Model name | Ducati Monster 800 i.e. |
| Year | 2004 |
| Category | Naked bike |
| Rating | 3.7 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 803.0 ccm (49.00 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 73.0 HP (53.3 kW)) @ 8250 RPM |
| Torque | 69.0 Nm (7.0 kgf-m or 50.9 ft.lbs) @ 6500 RPM |
| Top speed | 206.0 km/h (128.0 mph) |
| Compression | 10.4:1 |
| Bore x stroke | 88.0 x 66.0 mm (3.5 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection |
| Fuel control | Desmodromic valve control |
| Ignition | Marelli electronic |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | 2.8:1 (15/42). Primary drive: 1.85:1 (33/61). |
| Fuel consumption | 5.20 litres/100 km (19.2 km/l or 45.23 mpg) |
| Greenhouse gases | 120.6 CO2 g/km. (CO2 - Carbon dioxide emission) |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel trellis |
| Rake (fork angle) | 24.0° |
| Front suspension | 43 mm upside-down |
| Front wheel travel | 130 mm (5.1 inches) |
| Rear suspension | Progressive linkage with Sachs adjustable monoshock. |
| Rear wheel travel | 148 mm (5.8 inches) |
| Front tire | 120/60-ZR17 |
| Rear tire | 160/60-ZR17 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 179.0 kg (394.6 pounds) |
| Weight incl. oil, gas, etc | 179.0 kg (394.6 pounds) |
| Power/weight ratio | 0.4078 HP/kg |
| Seat height | 770 mm (30.3 inches) If adjustable, lowest setting. |
| Overall height | 1212 mm (47.7 inches) |
| Overall length | 2100 mm (82.7 inches) |
| Wheelbase | 1440 mm (56.7 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Reserve fuel capacity | 3.50 litres (0.92 US gallons) |
| Oil capacity | 3.00 litres (3.17 US quarts) |
| Other specifications | |
| Color options | Metallic grey with red, yellow or black tank |
| Starter | Electric |
| Electrical | 12V 10Ah battery. |
| Update specs | Report missing specs or required updates. |
| Maintenance and service specs * | |
| Engine oil | SAE 10W-40 Synthetic |
| Brake fluid | DOT 4 |
| Spark plugs | NGK DCR8EIX |
| Chain links | 102 |
| Sprockets | 15/42 (front/rear) |
| Tire pressure front | 30 PSI (2.1 Bar or 210 kPa) |
| Tire pressure rear | 32 PSI (2.2 Bar or 220 kPa) |
| Fork tube size | 43 mm (1.7 inches) |
| *) Always verify maintenance and service data with the bike owner's manual. | |
