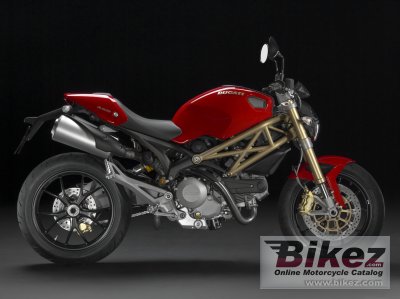

Ducati Monster 796 20th Anniversary 20132013 Ducati Monster 796 20th Anniversary specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The Monster revolutionised the biking world and has gone on to become far more than a simple motorcycle: it’s an expression of being, of individuality, of feeling unique. Over 250,000 enthusiasts have already personalised their bikes, making the Monster a timeless icon. |
| General information | |
|---|---|
| Motorcycle name | Ducati Monster 796 20th Anniversary |
| Year of manufacture | 2013 |
| Type | Naked bike |
| Rating |
Do you know this bike? Click here to rate it. We miss 2 votes to show the rating. |
| Engine and transmission | |
| Engine size | 803.0 ccm (49.00 cubic inches) |
| Type of engine | V2, four-stroke |
| Output | 85.8 HP (62.6 kW)) @ 8250 RPM |
| Torque | 78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 88.0 x 66.0 mm (3.5 x 2.6 inches) |
| Valves per cylinder | 2 |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.85. |
| Emission details | Euro 3 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Trail | 87 mm (3.4 inches) |
| Front suspension | 43mm upside-down forks |
| Rear suspension | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 245 mm (9.6 inches) |
| Wheels | Y-shaped, 5-spoke in light alloy |
| Physical measures and capacities | |
| Dry weight | 167.0 kg (368.2 pounds) |
| Weight incl. oil, gas, etc | 187.0 kg (412.3 pounds) |
| Power/weight ratio | 0.5140 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Red/bronze |
| Starter | Electric |
| Instruments | Digital unit displaying Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system. |
| Factory warranty | 2 years unlimited mileage |
