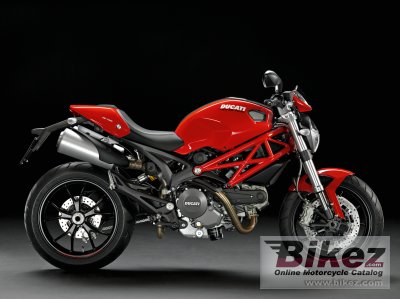

Ducati Monster 796 20132013 Ducati Monster 796 specifications, pictures, reviews and rating |
| Ducati's profilation of this bike |
| The Monster 796 is the perfect synthesis between sports performances, aesthetics and daily riding pleasure. Cared for in each single detail, it is the ideal bike for each riding style and represents the utmost evolution of the Monster family. |
| General information | |
|---|---|
| Model name | Ducati Monster 796 |
| Year | 2013 |
| Category | Naked bike |
| Rating | 3.1 See the detailed rating of engine performance, design and look, accident risk, etc. Compare with any other motorcycle. |
| Engine and transmission | |
| Displacement | 803.0 ccm (49.00 cubic inches) |
| Engine type | V2, four-stroke |
| Power | 85.8 HP (62.6 kW)) @ 8250 RPM |
| Torque | 78.0 Nm (8.0 kgf-m or 57.5 ft.lbs) @ 6250 RPM |
| Compression | 11.0:1 |
| Bore x stroke | 88.0 x 66.0 mm (3.5 x 2.6 inches) |
| Fuel system | Injection. Siemens electronic fuel injection, 45mm throttle body |
| Fuel control | Desmodromic valve control |
| Cooling system | Air |
| Gearbox | 6-speed |
| Transmission type | Chain (final drive) |
| Clutch | APTC wet multiplate with hydraulic control |
| Driveline | Chain; Front sprocket 15; Rear sprocket 39. Primary drive: Straight cut gears; Ratio 1.85. |
| Emission details | Euro 3 |
| Exhaust system | Lightweight 2-1-2 system with catalytic converter with twin lambda probes |
| Chassis, suspension, brakes and wheels | |
| Frame type | Tubular steel Trellis frame |
| Rake (fork angle) | 24.0° |
| Trail | 87 mm (3.4 inches) |
| Front suspension | 43mm upside-down forks |
| Rear suspension | Progressive linkage with preload and rebound Sachs adjustable monoshock |
| Front tire | 120/70-ZR17 |
| Rear tire | 180/55-ZR17 |
| Front brakes | Double disc. Four-piston calipers. |
| Diameter | 320 mm (12.6 inches) |
| Rear brakes | Single disc. Two-piston calipers. |
| Diameter | 245 mm (9.6 inches) |
| Physical measures and capacities | |
| Dry weight | 167.0 kg (368.2 pounds) |
| Weight incl. oil, gas, etc | 187.0 kg (412.3 pounds) |
| Power/weight ratio | 0.5140 HP/kg |
| Seat height | 800 mm (31.5 inches) If adjustable, lowest setting. |
| Wheelbase | 1450 mm (57.1 inches) |
| Fuel capacity | 15.00 litres (3.96 US gallons) |
| Other specifications | |
| Color options | Black, red, white |
| Starter | Electric |
| Instruments | Digital unit displaying Speedometer, rev counter, clock, scheduled maintenance warning, oil temperature, trip fuel, lap time, warning light for low oil pressure, fuel level, fuel reserve, neutral, turn signals, overrev, immobilizer. Ready for DDA system. |
| Factory warranty | 2 years unlimited mileage |
